Wall Mounted Slewing Jib Crane

The BZ wall-mounted slewing jib crane occupies no floor space and needs no foundation: it mounts on walls, columns, pillars or machine bodies. With capacities up to 5,000 kg, jib lengths up to 10 m and 180° slewing, it keeps the floor free while serving machines and workbenches.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

01 Product Description

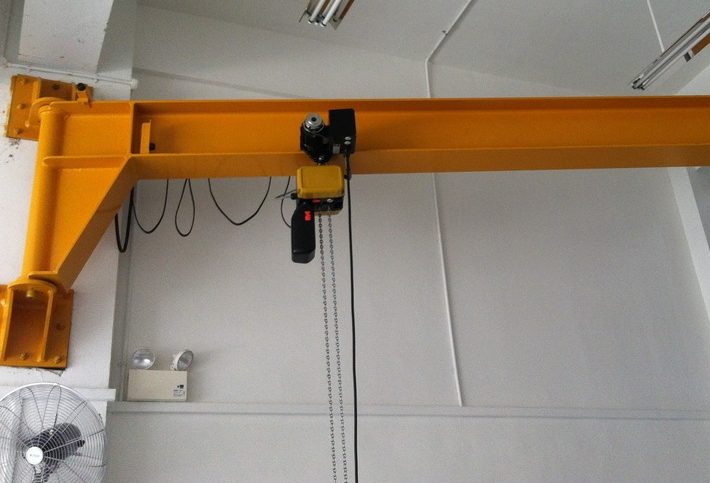

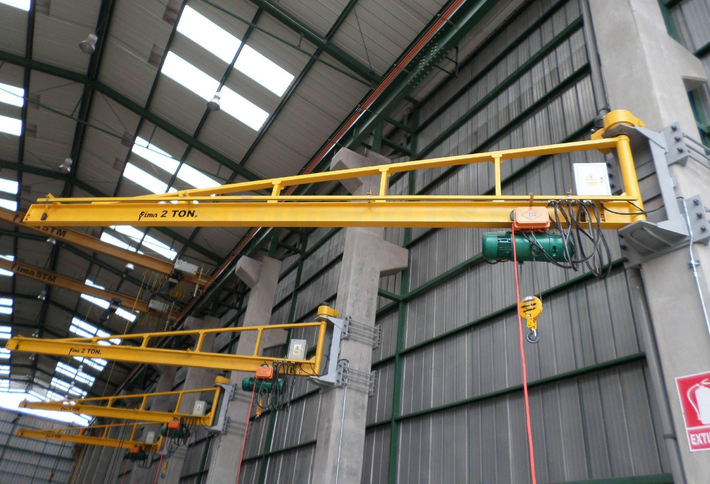

The BZ wall-mounted slewing jib crane gives up the floor-standing pillar of conventional jib cranes: the crane is mounted directly on a load-bearing wall, a steel column, a workshop pillar or even on a machine body. It occupies no floor space at all and needs no separate foundation, yet it provides a fully capable slewing lifting point exactly where material is handled. Two independent support bases ensure stable load carrying, and installation is quick and economical.

Depending on the configuration, the load is carried by a reduction-gear driven slewing jib or moved by manual push. With capacities up to 5,000 kg, jib lengths up to 10 m and a slewing angle of 180°, the crane is ideal for serving a defined working sector: machines, workbenches, doorways and loading openings. Easy operation, precise positioning and smooth running make it the first choice in workshops where the floor must stay completely free for traffic, transport and production equipment.

02 Product Advantage

Area-saving design: mounted on wall, column, pillar or machine body, occupies no floor space
No separate foundation required; installation is quick and economical
Maximum lifting capacity 5,000 kg; maximum jib length 10 m
Slewing angle 180°, ideal for serving a defined working sector
Slewing by reduction gear (electric) or manual push operation
Easy operation, precise positioning and smooth running
Two independent support bases ensure stable load carrying

03 Product Parameter

Item	Data
Maximum lifting capacity	5,000 kg
Available capacities	125 / 250 / 500 / 1,000 / 2,000 / 3,000 / 5,000 kg
Working radius	2 - 12 m
Maximum jib length	10 m
Slewing angle	180°
Slewing operation	Electric (reduction gear) or manual push
Installation	Wall / column / pillar mounted, no floor foundation
