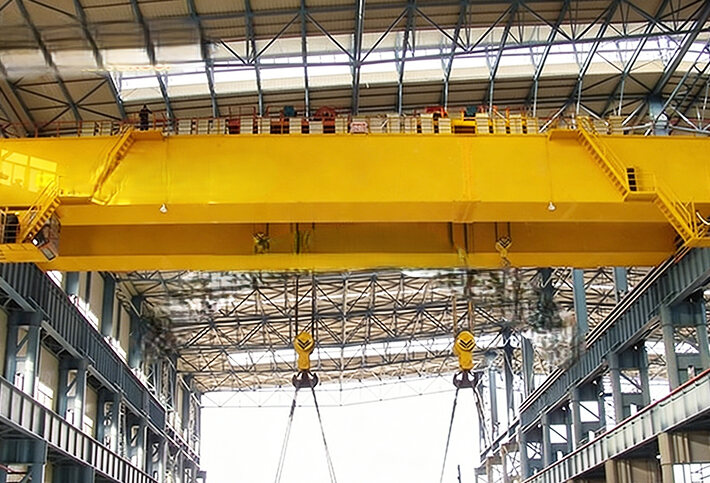

QD Series Overhead Crane with Hook

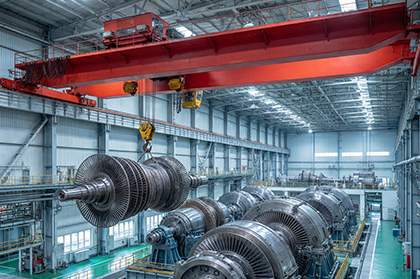

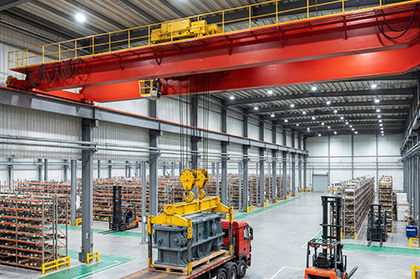

The QD series overhead crane with hook is the most widely used general-purpose bridge crane, primarily employed for indoor material handling and lifting operations inside workshops and factories. Rated capacity 5t. Span range 10.5~13.5m. Lifting height 16m. Duty classification A5. It is available in A5 (medium) and A6 (heavy) duty classes to match different service conditions and load spectra.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

01 Product Description

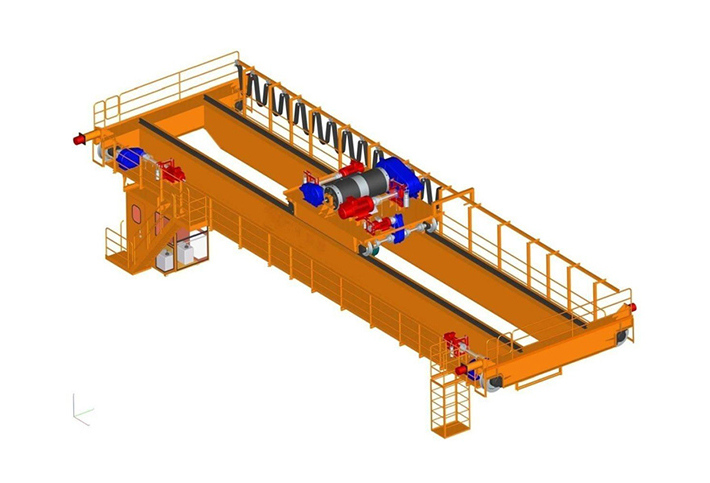

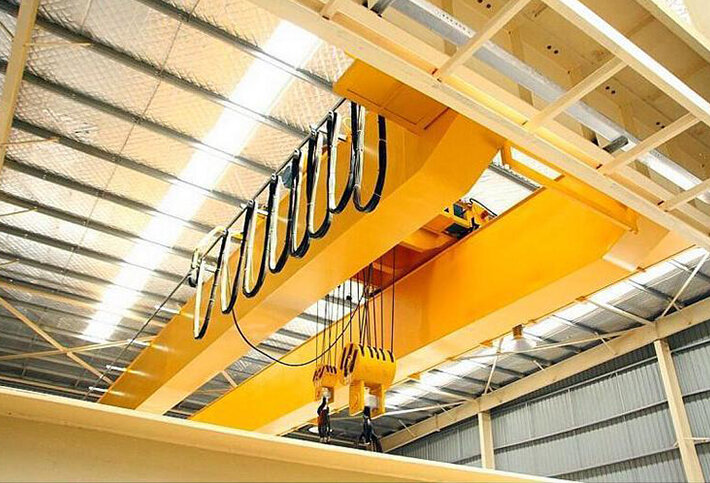

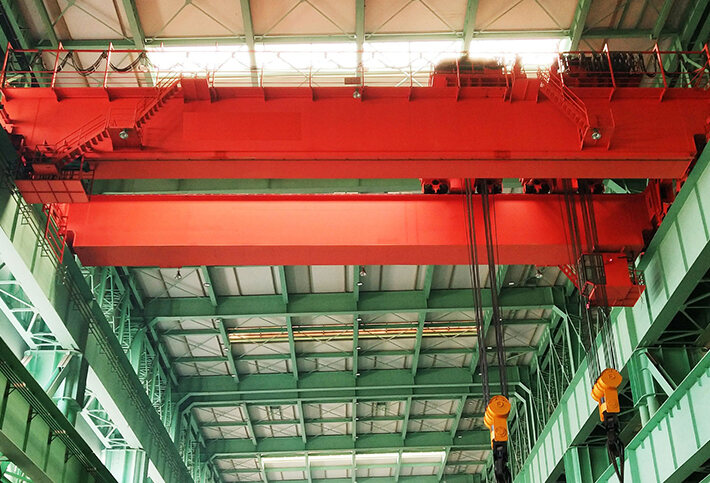

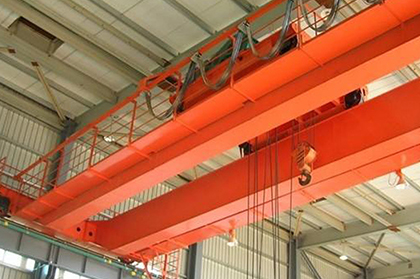

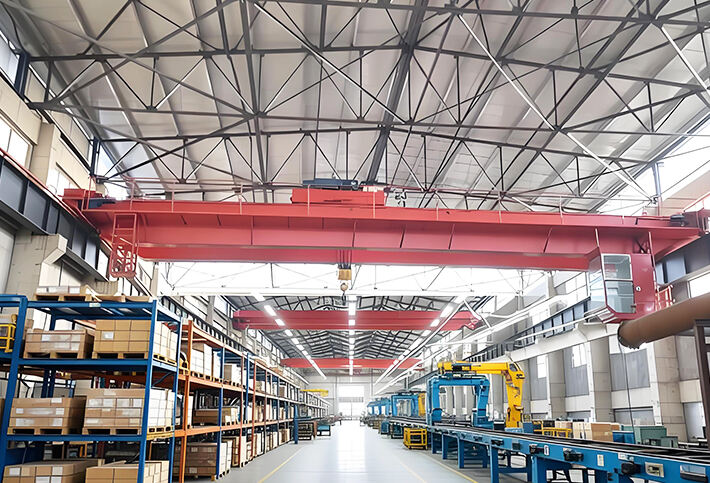

The QD crane consists of four major assemblies: the bridge girder, the crane travel mechanism, the trolley, and the electrical control system. The bridge utilises a box-section welded structure offering high rigidity and low dead weight. The cab can be accessed from the side, the end, or the top — three options to suit various workshop layouts. The cab can be positioned on either the left or the right side. Power supply options include safety slide wire or angle iron, which can be installed on the opposite side or the same side as the cab. All crane operations are performed from within the cab.

02 Product Advantage

Mature, field-proven design with the broadest application base in the industry.
Box-girder bridge delivers high stiffness with minimal deflection under load.
Box-girder bridge delivers high stiffness with minimal deflection under load.
Power supply choice between slide wire and angle iron, with flexible installation.
A5 and A6 duty classes available to match specific operating profiles.
Simple to operate and maintain with excellent cost-performance ratio.

03 Product Parameter

Cap	Main	t	5								5
	Aux		——								——
Span		m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting Height		m	16								16
			——								——
Duty			A5								A6
Speed	Main	m/min	12.5								15.5
	Aux		——								——
	Crab Travelling		37.2								37.2
	Crane Travelling		68.3		70.4						68.3		71.1		88.9
Limit Dimension	L1	mm	800								800
	L2		1250								1250
	L		——								——
	h		120								120
	h1		——								——
Main Dimension	H0	mm	770			765					770				765
	H1		1750	1750	1750	1750	1750	1750	1750	1750	1750	1750	1750	1750	1750	1750	1750	1750
	H2		2501	2501	2601	2656	2706	2808	2908	3008	2501	2501	2601	2656	2706	2808	2908	3008
	H3		71	71	171	226	276	378	478	578	71	71	171	226	276	378	478	578
	B		5734			5894		6389			5734			5894		6389
	K		1400								1400
	B1		230								230
	W		3550					4500			3550					4500
Max.Wheel Loading		KN	64	67	71.5	76	80.5	88	95	101.5	65.5	67.5	72	76.5	81	89	96	102
Power		KW	22.8								24.2					27.8
Crane Rail Recommended			43kg/m
Power Supply			50Hz 380V
