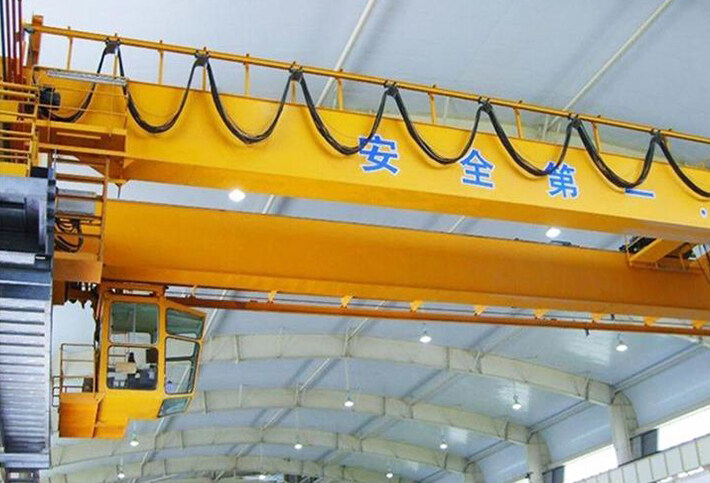

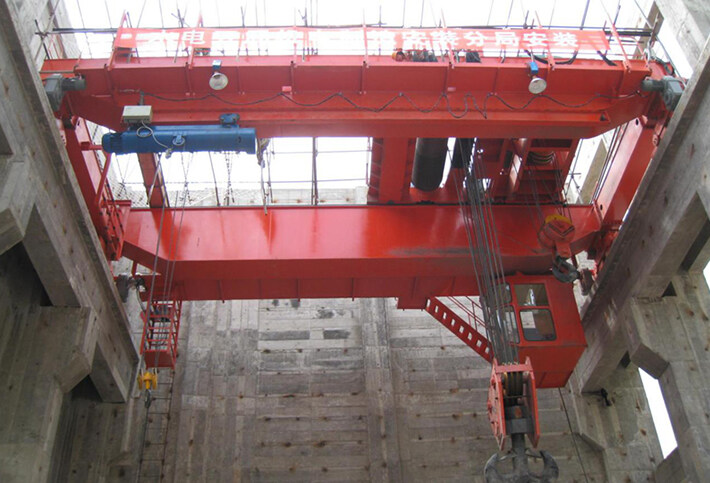

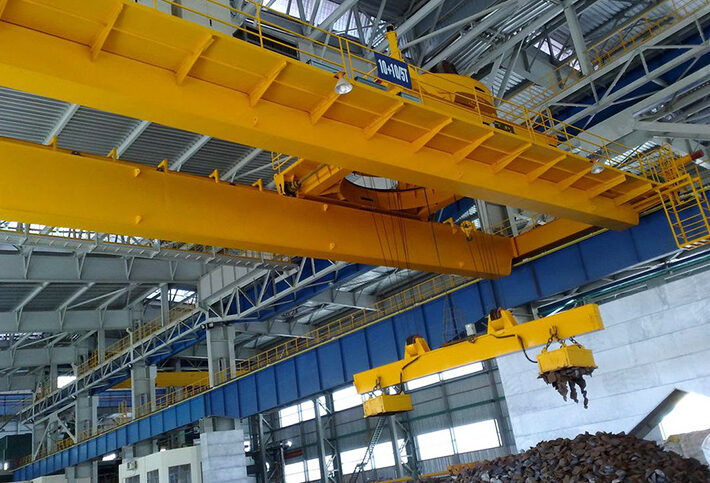

32 t / 40 t Overhead Crane with Carrier Beam

32 t / 40 t Overhead Crane with Carrier Beam is a specialised overhead crane equipped with an extended carrier beam, designed for handling long and slender loads such as steel profiles, pipes, and timber. It is widely used in steel warehouses, metal fabrication shops, and lumber yards. Rated capacity 16~16~20~20t. Span 22.5~25.5m. Lifting height 15~16m.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

32 t / 40 t Overhead Crane with Carrier Beam

01 Product Description

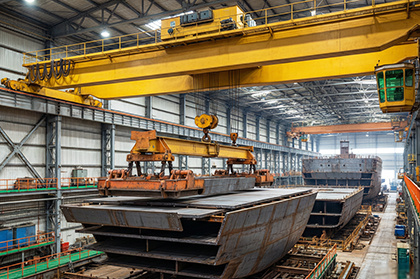

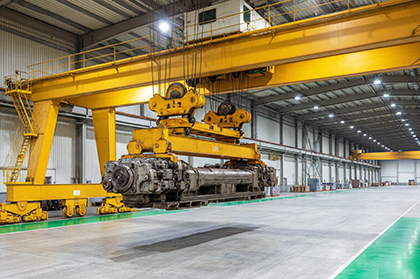

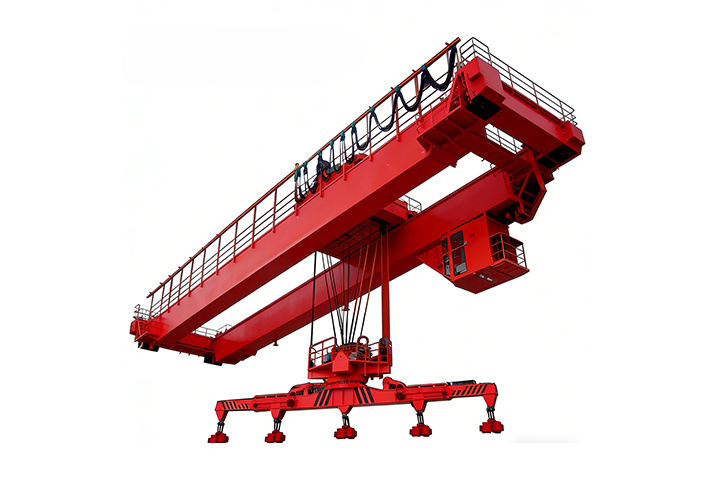

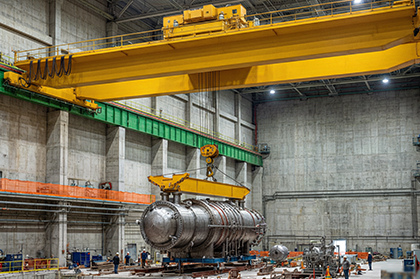

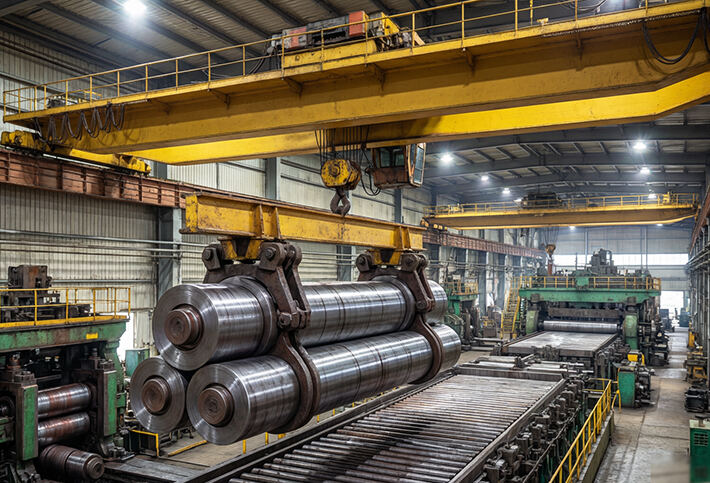

The carrier beam is fitted with multiple suspension points along its length, enabling simultaneous lifting of several elongated pieces in a single lift. The beam length and number of suspension points can be customised to match the material dimensions. The trolley travel and crane travel mechanisms operate independently for smooth, coordinated motion. Electrical control is provided via a joystick console or radio remote control for operator convenience. The main girders are of box or lattice construction, offering excellent rigidity and load-carrying capacity.

02 Product Advantage

Carrier-beam design allows simultaneous handling of multiple long items, maximising productivity.
Customisable beam length and suspension-point spacing for specific load profiles.
High bridge rigidity ensures stable operation even at large spans.
Flexible operation with joystick or radio remote control option.
Ideal for dedicated storage of steel sections, pipes, and long products.
Significantly reduces manual handling labour and improves loading/unloading efficiency.

03 Product Parameter

Lifting capacity		t	16+16					20+20
Span		m	22.5	25.5	28.5	31.5	34.5	22.5	25.5	28.5	31.5	34.5
Lifting Height			15					16
Duty			A6					A6
Speed	Hoisting	m/min	12.5					11.7
	Crab travelling		37					37.5
	Crane travelling		87.3					87.3
limit dimension	L	mm	4000					4000
	L1		1700					1600
	L2		1700					1800
	h		690				590	668				566
main dimension	H	mm	2538				2638	2640				2742
	H1		1070				1170	1130				1230
	H2		418	568	718	818	818	400	550	700	800	802
	H3		2838	2838	2988	3138	3238	2820	2970	3020	3220	3222
	K		6000					6500
	W		8300	8500				8800	9000
	B		10258	10478				10930	11130	11062
	B1		300					300
Max.Wheel Loading		kN	313	350	345	355	365	353	369	381	397	414
Total Power		kw	111.3					128.5		142.5
Crane Rail Recommended			45kg/m & QU70					QU100
Power Supply			3-Phase A.C.50Hz 380V
