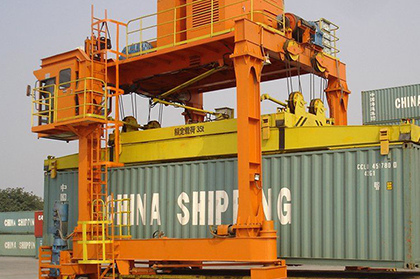

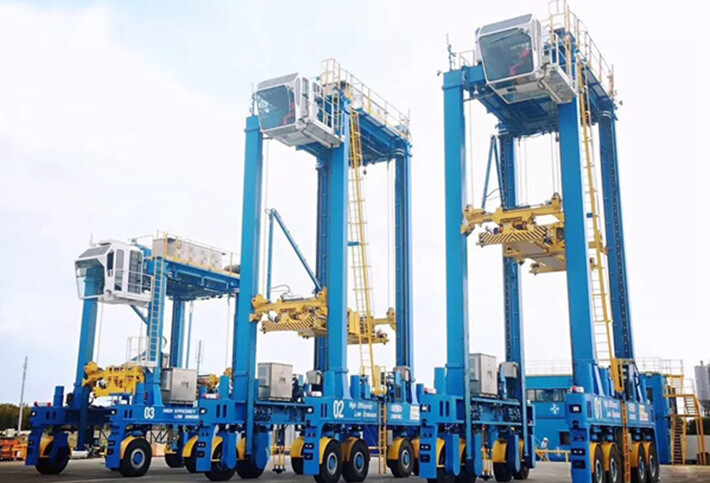

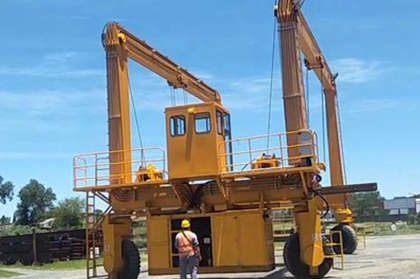

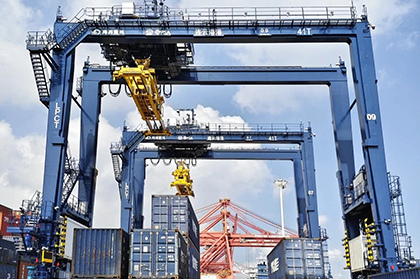

The rubber-tyred gantry crane is a large-capacity mobile crane employing rubber-tyred travel, suitable for heavy-lift operations in ports, shipyards, stockyards, and industrial facilities. Rated capacity 100t. It operates on paved surfaces without rails, offering exceptional mobility.
The crane runs on multiple rubber-tyred wheel sets with a flexible steering system, allowing free movement within the yard. The main girder is of box or lattice construction with outstanding load capacity. A main/auxiliary hook arrangement accommodates different lifting weights. Hydraulic leg levelling ensures stable operation even on uneven ground. Operation is performed from a cab offering excellent all-round visibility.
Rubber-tyred travel eliminates rail infrastructure for maximum operational flexibility.
Flexible steering enables manoeuvrability within confined yard spaces.
Large lifting capacity suitable for heavy industrial loads.
Hydraulic leg levelling adapts to uneven ground conditions.
Main/auxiliary hooks for versatile lifting requirements.
Operator cab with excellent all-round visibility for safe operation.
| RUBBER TYRED GANTRY CRANE | |
| rate capacity | 100t |
| span | 7m(Net span5.4m) |
| hoisting height | 5.75m |
| hoisting speed | 0~1m/min Heavy load 0~2m/min Empty load |
| Gradeabiicy | 2.5% |
| travelling speed | 0~25m/min Heavy load 0~45m/min Empty load |
| Arches loading | 42500kg |
| grounde press | <0.9kg/cm² |
| Road condition | mattess、pressed gravel |
| tire type/no. | 18.00-25/8 |
| Driving wheel/Driven wheel | 2/2 |
| Extenal dimension | lenght 11.5mXwidth 9.1mXheight 9.15m |
| Total power | 85kw Power supplied by diesel engine |
| control model | Cab and remote control |
| transmission model | all device driven by hydraulic system |
| steering model | 360°rotation, all wheel steering |
