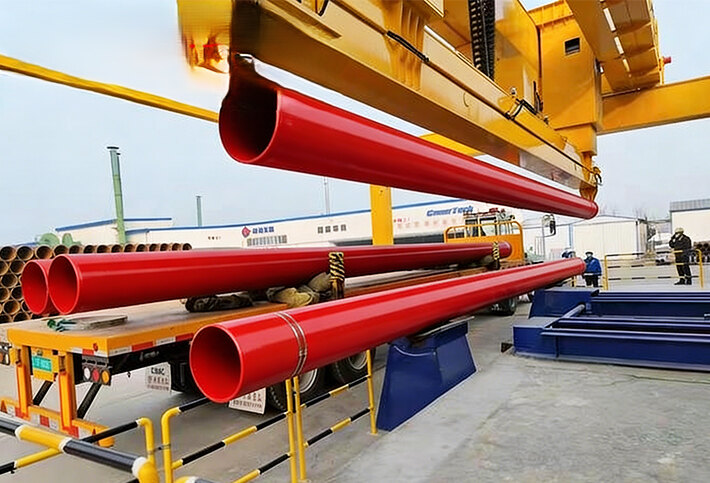

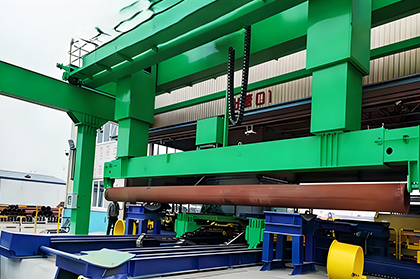

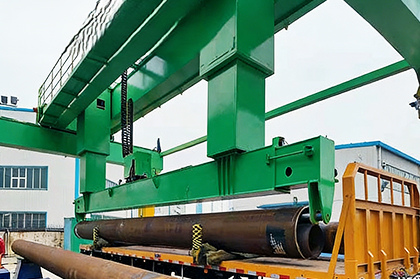

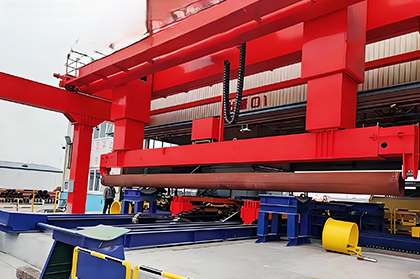

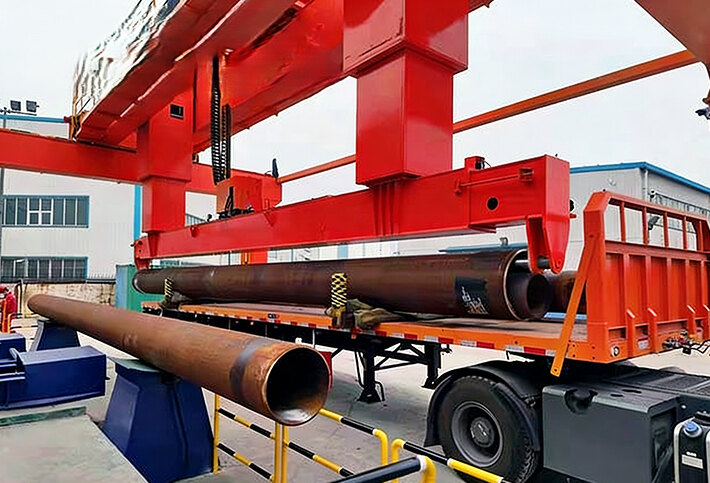

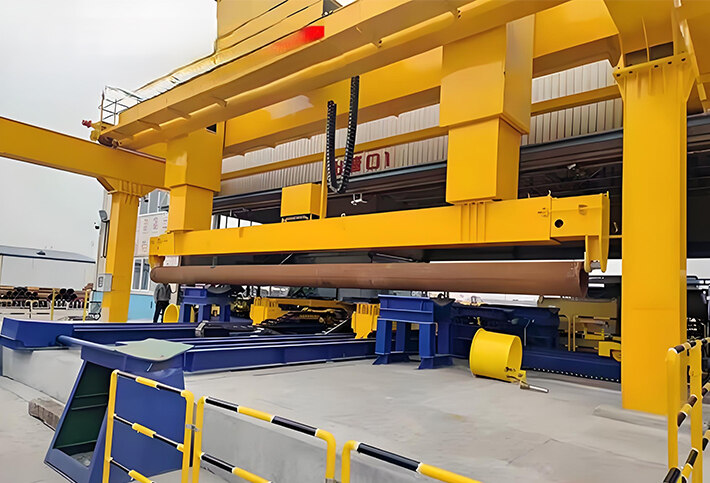

The intelligent steel tube allocation overhead crane is an automated material handling system developed for steel tube warehouses and distribution centres. It automates the entire workflow: inbound storage, inventory management, sorting, and outbound dispatch. Rated capacity 16~16t. Span 26.5m. The system integrates intelligent control and warehouse management software.
The crane employs a twin-trolley configuration or a specialised beam with tube-handling attachments, capable of lifting single or multiple tubes simultaneously. The control system is integrated with a Warehouse Management System (WMS) for digital inventory tracking. Features include automatic positioning, automated storage/retrieval, and cycle counting. Variable-frequency drive technology enables precise positioning and smooth acceleration/deceleration, minimising tube-to-tube impact damage.
Intelligent control system automates steel tube warehouse operations end-to-end.
Integrated WMS for digital inventory management and traceability.
Specialised tube-handling attachments protect tube surface quality during handling.
Variable-frequency drive for precise positioning and reduced collision damage.
Maximises warehouse space utilisation and throughput efficiency.
Reduces labour costs and eliminates human operational errors.
| Lifting Capacity | t | 16+16t | |
| Span | m | 26.5 | |
| Lifting Height | m | 7 | |
| Duty Classification | A7 | ||
| Speed | Lifting | m/min | 1.2-12 |
| Cross Travel | 6.2-62 | ||
| Crane Travelling | 20.6 | ||
| Total Power | kw | 315 | |
| Maximum Wheel Load | kN | 295 | |
| Crane Rail Recommended | kg/m | QU100 | |
| Power Supply | 3P A.C 50Hz 380V | ||
