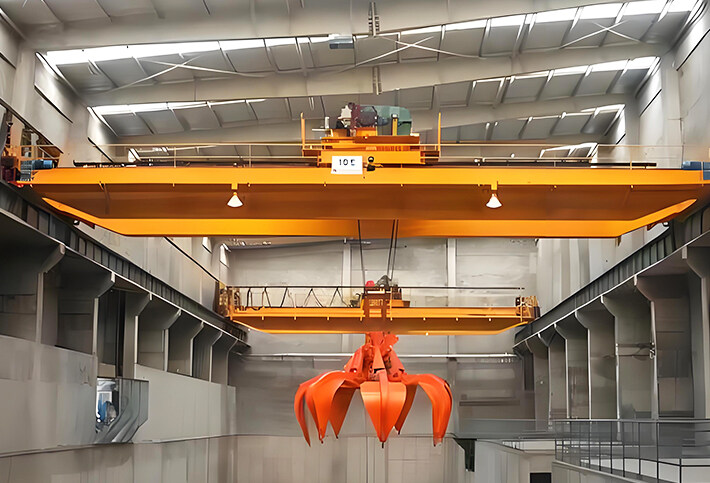

Garbage Grab Overhead Crane

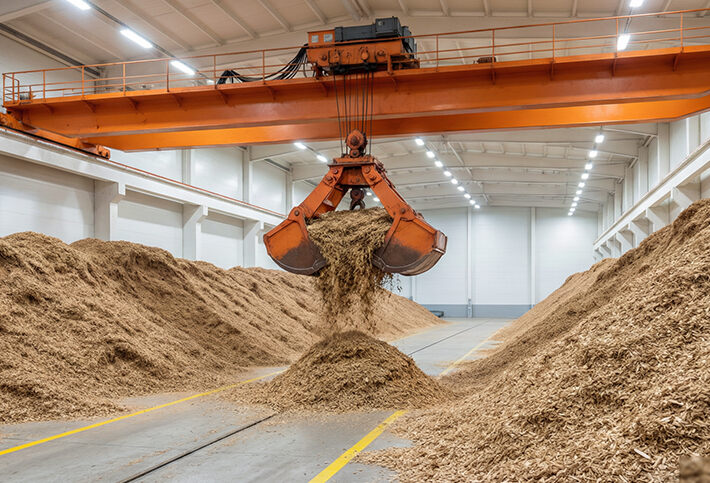

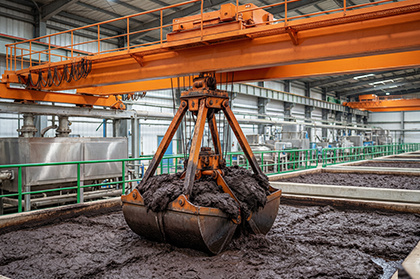

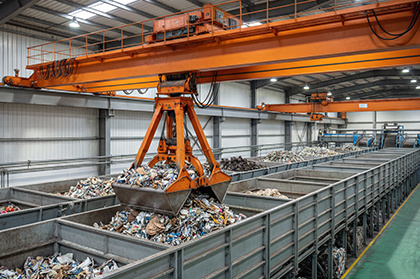

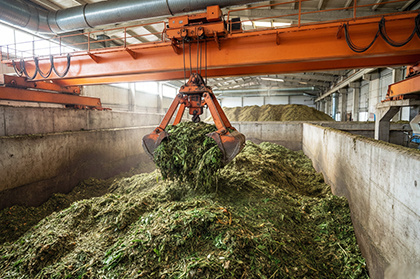

The garbage grab overhead crane is specially designed for waste-to-energy plants and waste transfer stations. It handles the grabbing, feeding, and mixing of municipal solid waste in the refuse pit, serving as the core equipment in the waste treatment process. Rated capacity 8~10t. It is equipped with a dedicated refuse grab adapted to the characteristics of waste materials.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

01 Product Description

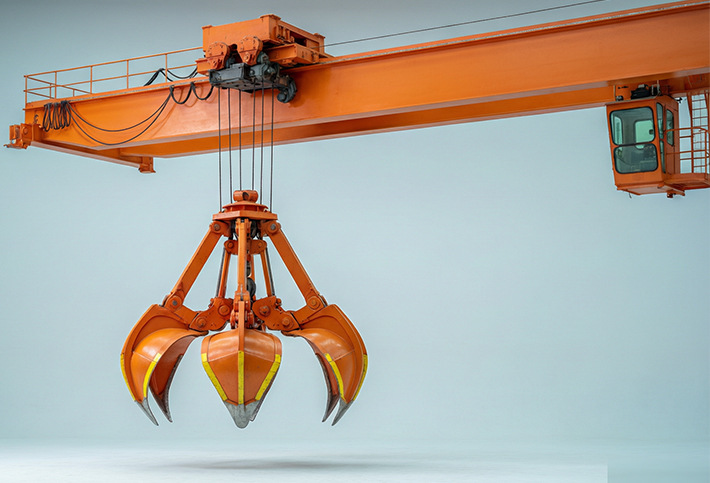

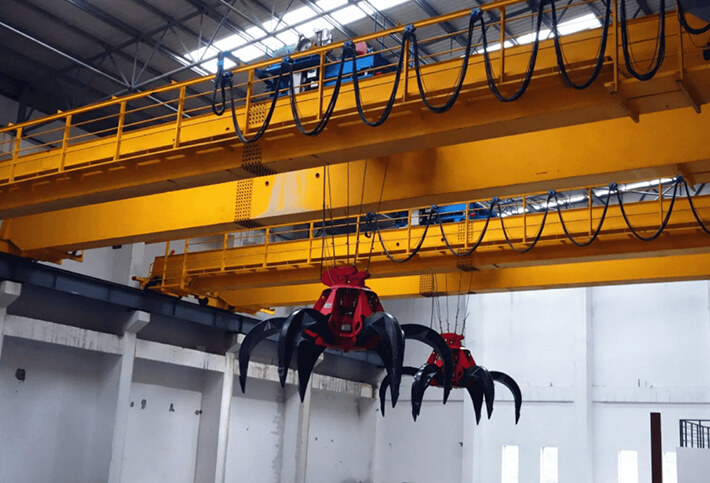

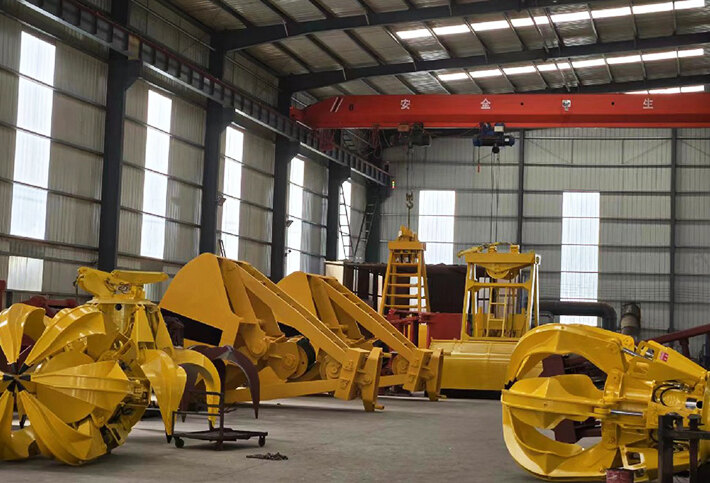

The crane uses a multi-tine or clamshell refuse grab featuring large volume and high penetration force, capable of effectively grabbing and handling fermented waste. The hoisting and closing mechanisms are independently driven by two drums, allowing the grabbing force to be adjusted according to waste properties. The electrical system employs variable-frequency drive for smooth, energy-efficient operation. A waste-weighing system provides real-time grab-weight data. Operation can be performed from an operator cabin or via remote control.

02 Product Advantage

Dedicated refuse grab with high penetration force and large volume suited to waste characteristics.
Dual-drum independent drive for separate control of hoist and close motions.
Variable-frequency drive for smooth operation and energy savings.
Integrated waste-weighing system for production and cost management.
High duty cycle rating for 24/7 continuous operation.
Corrosion-resistant design for the aggressive environment of waste treatment plants.

03 Product Parameter

Productivity		t/d	800~1000				1000~1200					1200~1500
Lifting capacity		t	8				10					12.5
Volum of Grab		m³	5				6.3					8
Span		m	22.5	25.5	28.5	31.5	19.5	22.5	25.5	28.5	31.5	19.5	22.5	25.5	28.5	31.5
Lifting Height			34				36					36
Duty			A8				A8					A8
Speed	Lifting	m/min	up	4.5~45			up	4.5~45				up	5~50
			down	6~60			down	6~60				down	7~65
	Crab travelling		4.5~45				4.85~48.5					5~50
	Crane travelling		4.8~48				6.5~65					7~70
limit dimension	L1	mm	2600				2600					2850
	L2		2600				2600					2850
	h		6000				6000					6000
main dimension	H	mm	2300				2375					2550
	B		5724				5724					5875
	K		2500				2500					2850
	B1		230				230					230
	F		618	718	818	968	643	743	843	845	905	575	655	757	907	1057
Max.Wheel Loading		kN	117	125	134	141	136	143	151	162	170	155	165	175	185	195
Total Power		kw	106				135					190
Crane Rail Recommended			43kg/m				QU70					50kg/m & QU70
Power Supply			3-Phase A.C.50Hz 380V

04 Inquiry

05 Related Products

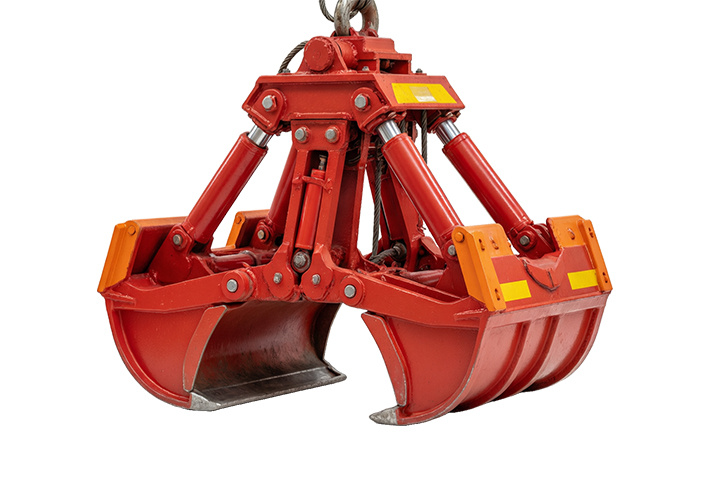

QZ Series Overhead Crane with Grab

The QZ series overhead crane with grab is designed for handling bulk materials in metallurgical plants, mines, ports, and stockyards, where loose materials such as ore, coal, coke, and aggregates need to be loaded, unloaded, and transferred. Different grab types are available to match specific material densities.

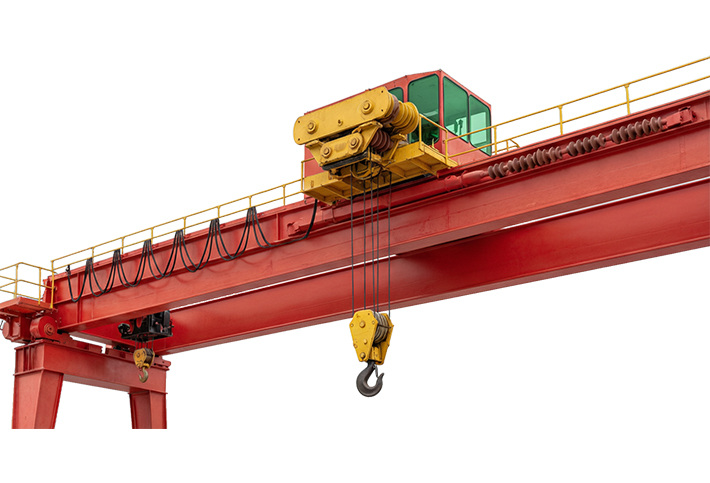

QY Series Insulating Overhead Crane

The QY series insulating overhead crane is purpose-built for environments requiring strict electrical insulation, such as aluminium smelting pot rooms, electrochemical workshops, and other strong electric-field areas. Rated capacity 5t.

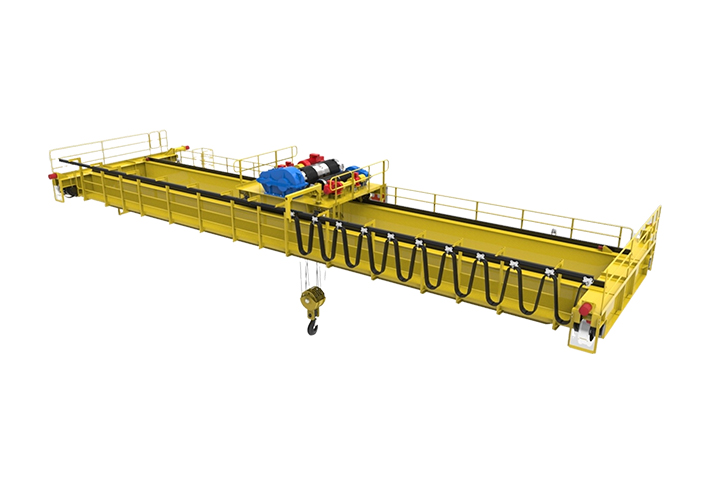

QB Series Explosion-Proof Overhead Crane

The QB series explosion-proof overhead crane is designed for material handling in hazardous areas containing flammable gases, vapours, or dusts. It is widely deployed in chemical plants, petrochemical facilities, coal mines, and pharmaceutical production sites.

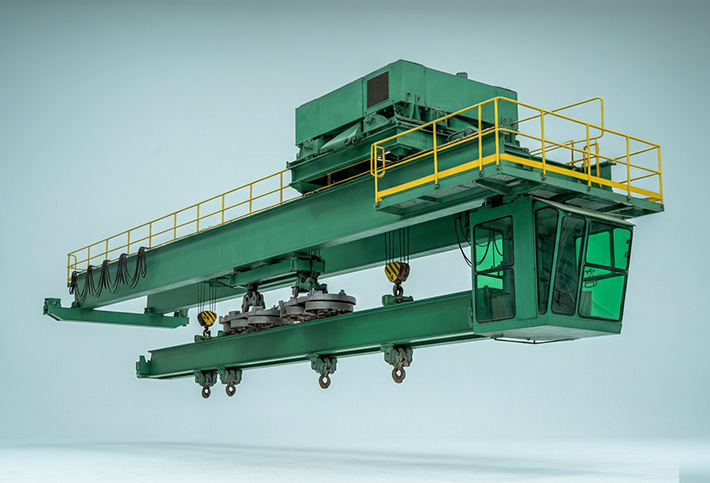

15 t / 20 t Overhead Crane with Carrier Beam

15 t / 20 t Overhead Crane with Carrier Beam is a specialised overhead crane equipped with an extended carrier beam, designed for handling long and slender loads such as steel profiles, pipes, and timber.

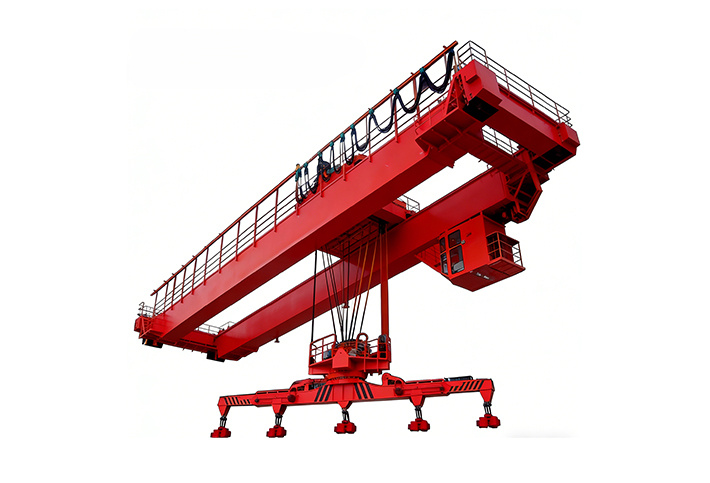

32 t / 40 t Overhead Crane with Carrier Beam
