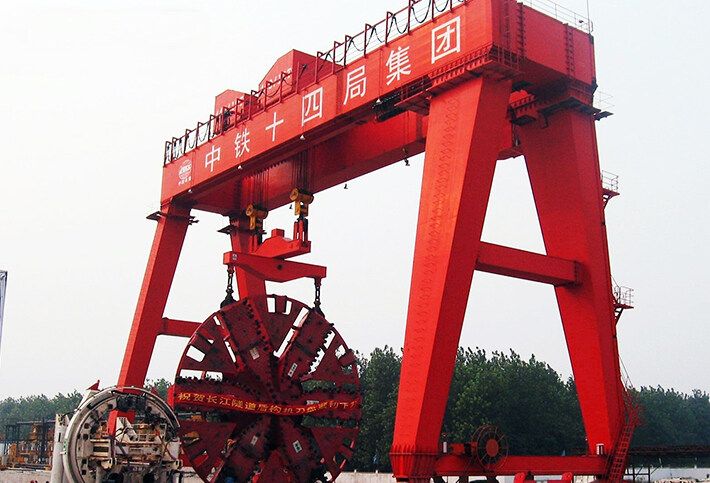

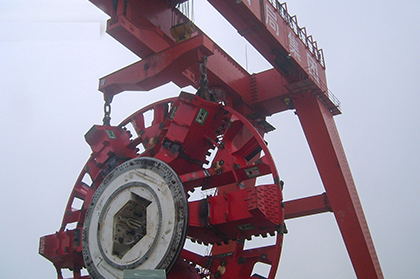

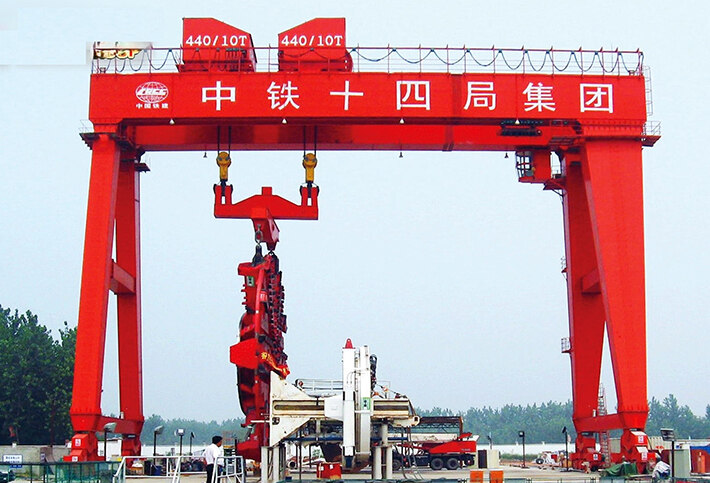

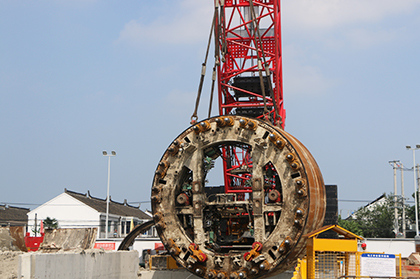

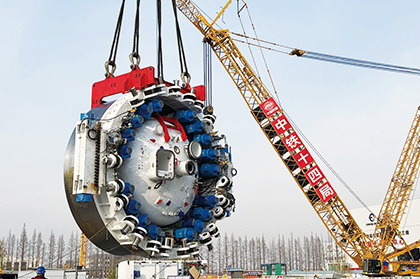

The gantry crane for shield tunnelling is purpose-designed for metro and tunnel construction using tunnel boring machines (TBMs). It handles segment lifting, material supply, and TBM support operations, serving as critical ancillary equipment in shield tunnelling. It is suitable for metro, railway, and road tunnel construction sites.
The crane adopts a double-girder or A-type configuration with a dedicated spreader for tunnel segment handling. The design is compact with high lifting height and a high duty cycle, accommodating the frequent relocation demands of tunnel construction sites. Crane travel is driven by variable-frequency drives for precise positioning. Radio remote control is available, allowing ground-level operators to manage all crane movements safely.
Designed specifically for shield tunnelling — suitable for segment and material handling.
Compact layout for easy relocation between construction sites.
High lifting height accommodates deep excavation pit requirements.
Variable-frequency drive for precise positioning during segment installation.
High duty cycle for the frequent lifts typical of tunnelling projects.
Optional radio remote control improves operator safety and visibility.
| GANTRY CRANE WITH SHIELD | |||
| Lifting capacity | 400 | ||
| Working system | A3 | ||
| Span（m） | 33 | 34 | |
| Lifting Height | Main lifting | 24(On the track)23(Under the rail) | |
| Aux lifting | 22(On the track)26(Under the rail) | ||
| speed | lifting | ||
| Main lifting | 0.09~0.9 | ||
| Aux lifting | 7 | ||
| traveling | |||
| Trolley Traveling | 1.6~16 | ||
| Crane Traveling | 1.15~11.5 | ||
| Dimensions | L1 | 2500 | |
| L2 | 3500 | ||
| H1 | 3196 | ||
| H2 | 22000 | ||
| B | 14000 | ||
| B1 | 22800 | ||
| b1 | 1920 | ||
| b2 | 1280 | ||
| W | 4500 | ||
| D | 6000 | ||
| Max wheel load | 406 | 415 | |
| Steel track | QU100 | ||
| Power source | Three-phase exchange 50Hz 380V | ||
| Lifting gear rotation angle | ±90° | ||
| Applicable maximum cutter diameter (m) | 15 | ||
