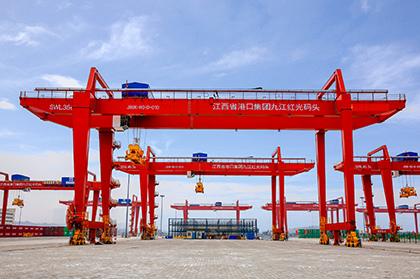

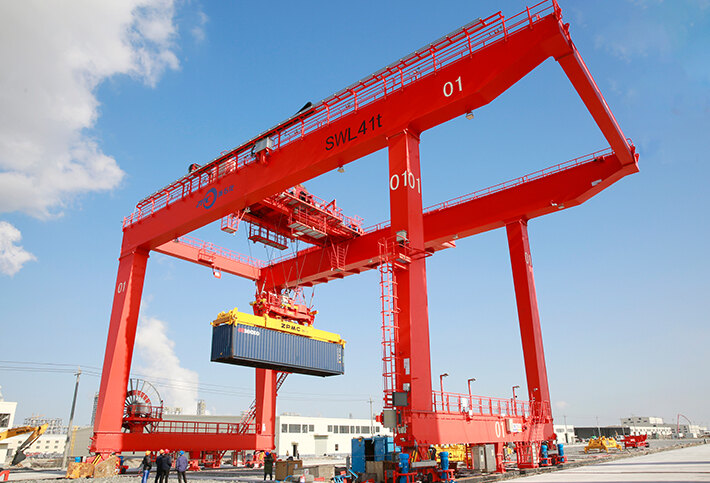

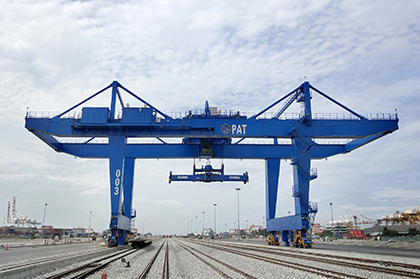

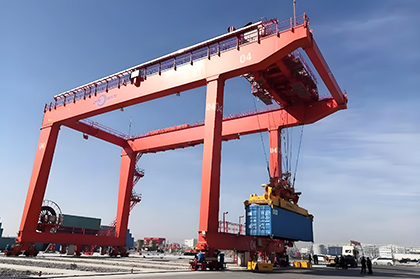

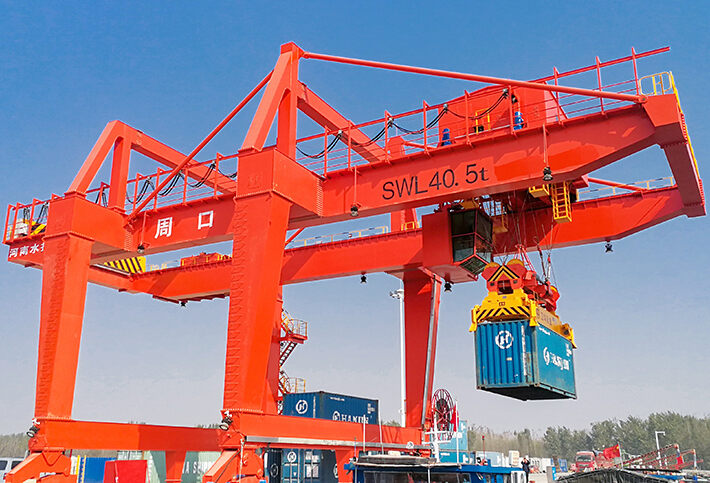

The rail-mounted container gantry crane (RMG) is a key handling machine for railway container yards and port stacking areas, performing loading, unloading, stacking, and transfer of intermodal containers. Rated capacity under spreader 35~41t. Lifting height 12.5~15.3~18.3m. It runs on fixed rails for precision positioning.
The RMG travels on dedicated rails, offering superior positioning accuracy and a high degree of automation. An automatic telescopic spreader seamlessly handles 20 ft and 40 ft containers. Both hoisting and trolley travel are controlled by variable-frequency drives for precise, smooth motion. An optional yard management system provides automatic container tracking and inventory control. Remote radio control reduces manual intervention and improves throughput.
Rail-guided travel delivers superior positioning accuracy for automated operation.
Automatic telescopic spreader handles 20 ft and 40 ft containers without manual adjustment.
Variable-frequency drive for smooth operation and precise positioning.
Optional yard management system enables intelligent container tracking.
Remote / radio control available for reduced manual intervention.
Ideal for railway terminals, port stacking areas, and inland container depots.
| Main Technical Parameters | ||||
| Lifting capacity of the spreader | Lifting Capacity Under Spreader | 35 | 41 | 70 |
| Base distance | Base Distance | 10/16 | ||
| Span | Span | 30/35/40 | ||
| Lifting height | Lifting Height | 12.5/15.3/18.3 | ||
| Stacking layers | Stack Layers | Pile 3 passes 1 / Pile 4 passes 1 / Pile 5 passes 1 | ||
| Container specifications | Container Specification | 20', 40', 45' | 20', 40', 45' | 双20', 20', 40', 45' |
| Speed | Hoisting(full load/empty load) | 13/20 | 13/20 | 20/40 |
| Gantry Traveling(full load/empty load) | 45 | 45 | 45 | |
| Trolley Traveling | 70 | 70 | 70 | |
| Wheel Numbers | 16/20 | 16/20 | 24 | |
| Maximum Wheel Load | 250 | 280 | 300 | |
| Power Supply | Three Phase AC 380V 50Hz | |||
