QZ Series Overhead Crane with Grab

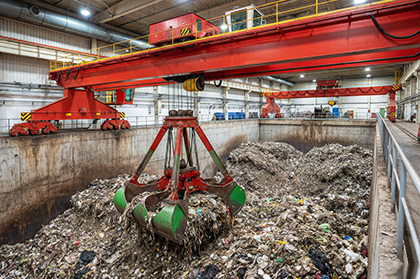

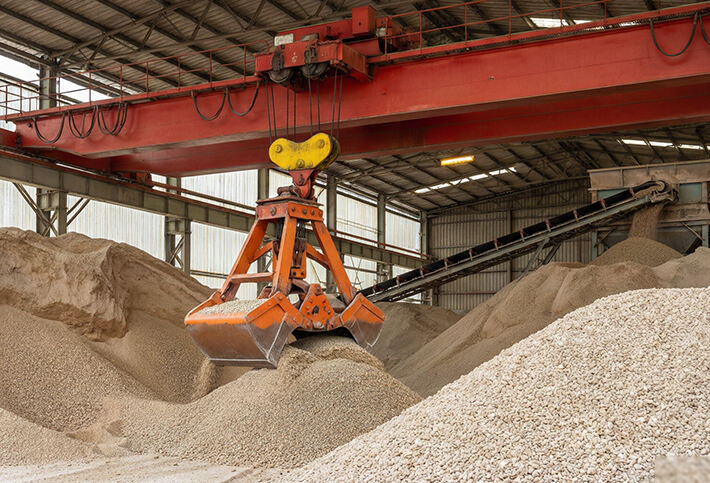

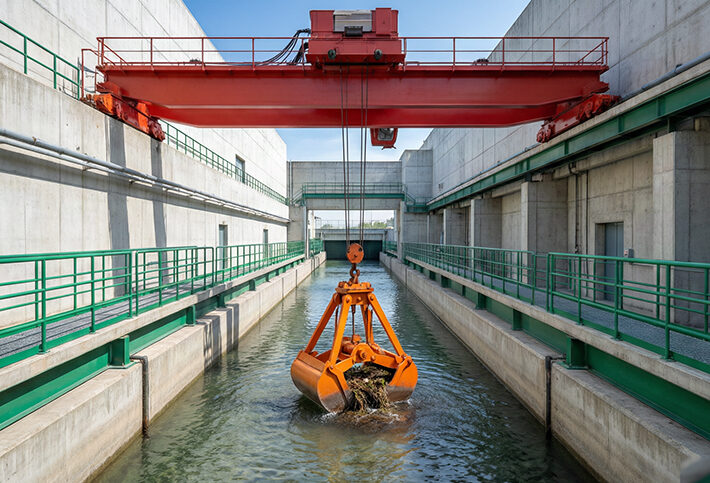

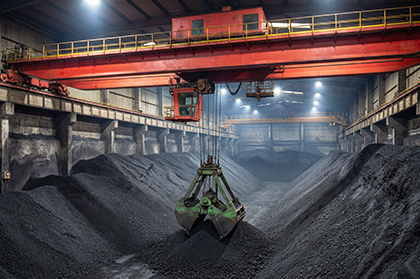

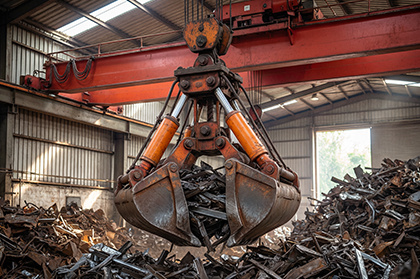

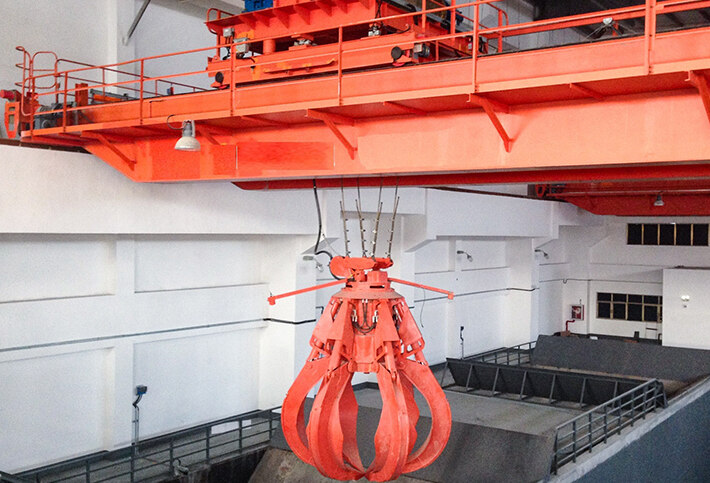

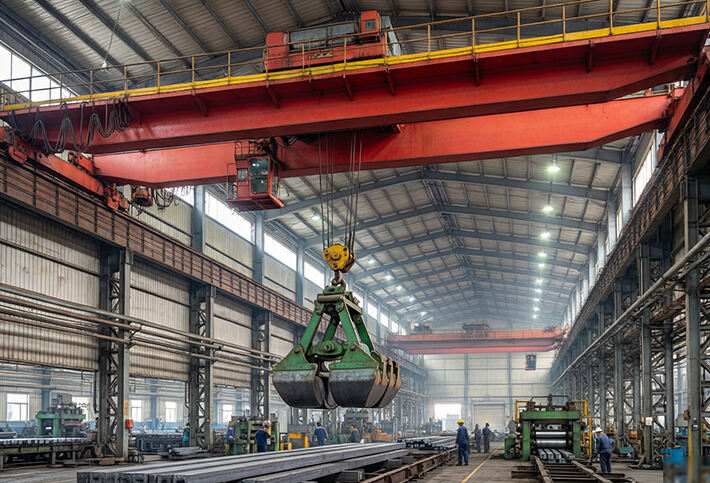

The QZ series overhead crane with grab is designed for handling bulk materials in metallurgical plants, mines, ports, and stockyards, where loose materials such as ore, coal, coke, and aggregates need to be loaded, unloaded, and transferred. Different grab types are available to match specific material densities.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

01 Product Description

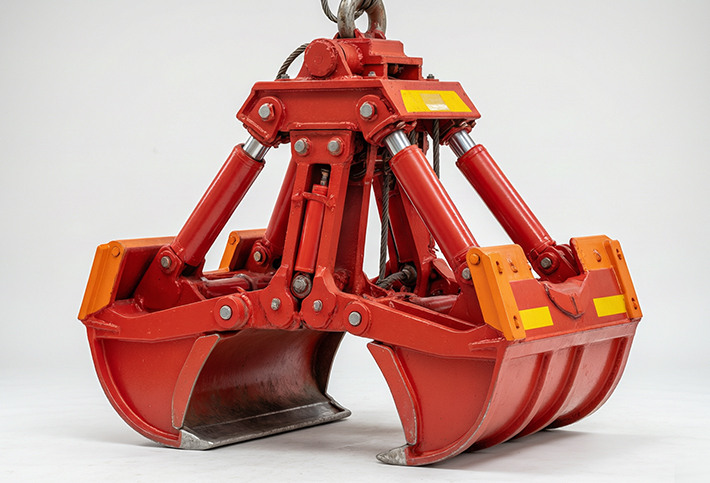

The QZ crane uses a grab as its lifting attachment, enabling automatic grabbing and discharging of bulk materials. Grabs are classified as light-duty, medium-duty, heavy-duty, and extra-heavy-duty depending on material density. The main structure comprises the bridge girder, crane travel mechanism, trolley travel mechanism, grab hoisting/opening-closing mechanism, and electrical control system. Grab opening/closing and hoisting are driven by a dual-drum arrangement, allowing independent or simultaneous operation.

02 Product Advantage

Full range of grab types (light / medium / heavy / extra-heavy) for different material densities.
Dual-drum design enables independent control of grab open/close and hoist motions.
High productivity for continuous bulk-material handling.
Simple to operate with a high degree of automation.
Robust construction withstands severe operating conditions.
Grab parameters can be customised for specific material characteristics.

03 Product Parameter

Lifting capacity		t	5t								10t
Span		m	10.5	15.5	16.5	19.5	22.5	25.5	28.5	31.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting Height		m	20								18
Duty			A6								A6
Speed	Hoisting	m/min	39.2								39.3
	Crab travelling		44.6								45.9
	Crane travelling		95.6					113.6			112.5			101
limit dimension	S1	mm	1635								2015
	S2		1635								1850
main dimension	B	mm	6568			6638		7163			6913			6963		7388	7413
	W		4000			4050		5000			4000			4100		5000
	K		2000								2000
	H		1876					1926			2078			2168
	H1		705					850			815			940
	H2		128	228	328	478	628	728	878	1028	180	230	380	390	540	690	840	940
	H3		2546	2646	2746	2898	3048	3148	3298	3448	2600	2650	2800	2810	2960	3110	3260	3360
	H4		5065	5165	5265	5413	5563	5663	5813	5965	3827	3977	4127	4137	4287	4437	4587	4687
	H5		850								700
	b		230								230			260
Max.Wheel Loading		kN	75	80	87	95	102	113	122	130	113	121	131	142	152	162	172	180
Crane Rail Recommended			QU43Kg/m or QU70								QU43Kg/m or QU70
Power Supply			3-Phase A.C.50Hz 380V								3-Phase A.C.50Hz 380V

Grab	U	113	109	110	105	106	101	102	127	123	124	119	120	115	116
Type		Lightweight	Medium		Heavy		Super Heavy		Lightweight	Medium		Heavy		Super Heavy
Volume	m³	2.5	1.5		1		0.75		5	3		2		1.5
Material density	t/m³	<1	>1~1.7		>1.7~2.5		>2.5~3.3		<1	>1~1.7		>1.7~2.5		>2.5~3.3
Self-respect	Kg	2633	2549	2615	2506	2568	2479	2546	4600	4803	4866	4860	4913	4730	4793
Main dimensions	D	3120	2740	2740	2530	2530	2340	2340	3800	3430	3430	3220	3220	2820	2820
	Ba	2200	1950	1950	1800	1800	1650	1650	2700	2400	2400	2200	2200	1960	1960
	Bb	1500	1354	1354	1258	1258	1160	1160	2080	1754	1754	1528	1528	1416	1416
	Bh	3135	2836	2936	2835	2835	2735	2735	3900	3747	3742	3640	3640	3490	3490
