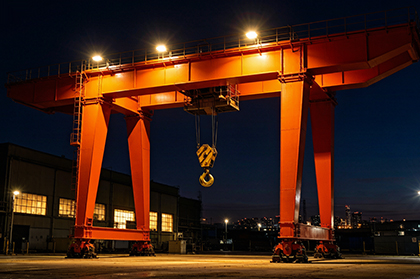

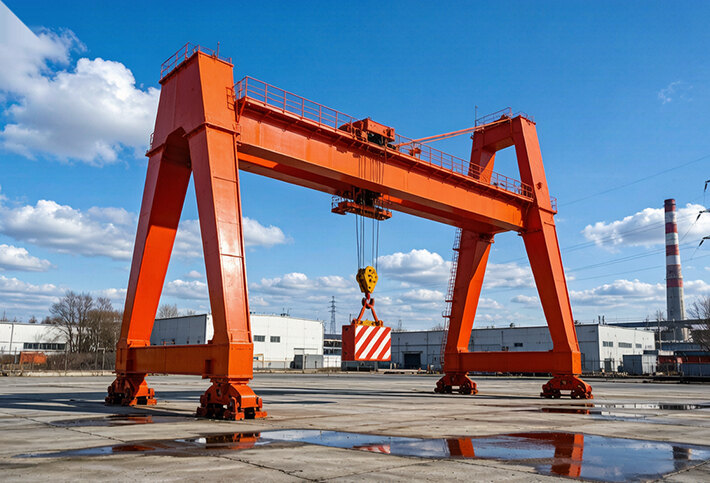

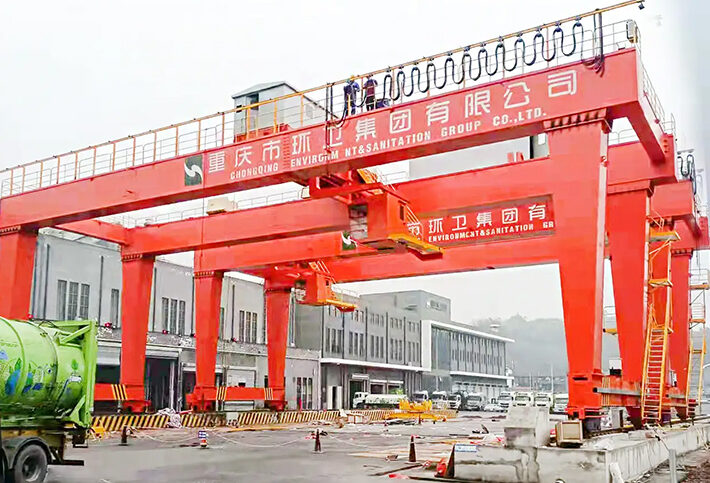

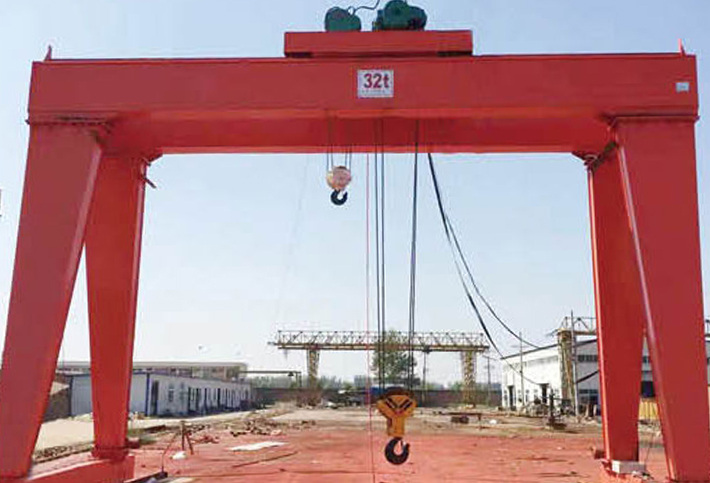

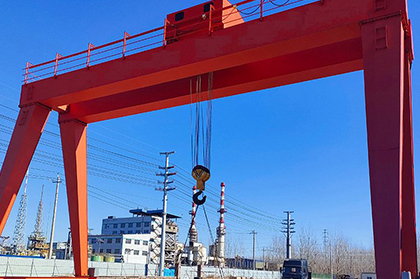

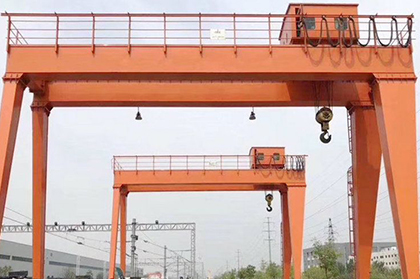

A-Type Double Girder Gantry Crane

The A-type double girder gantry crane is designed for outdoor material handling in freight yards, ports, and stockyards, handling loading, unloading, lifting, and transfer duties across a wide capacity range. Rated capacity 5t. Span range 18~22m. Lifting height 10~12m. Duty classification A5.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

01 Product Description

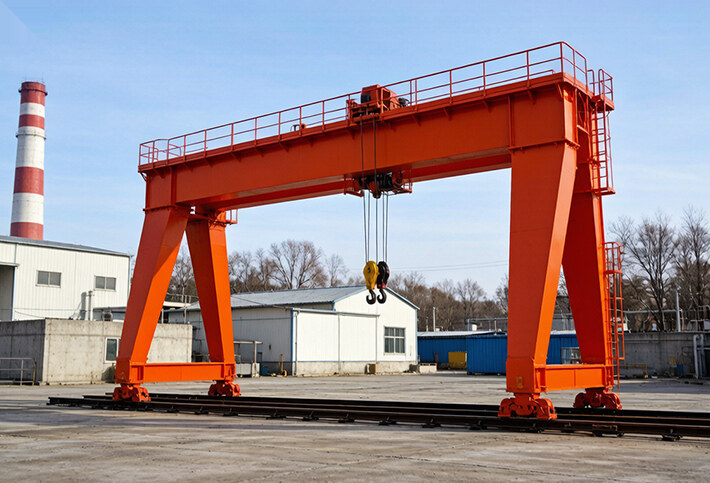

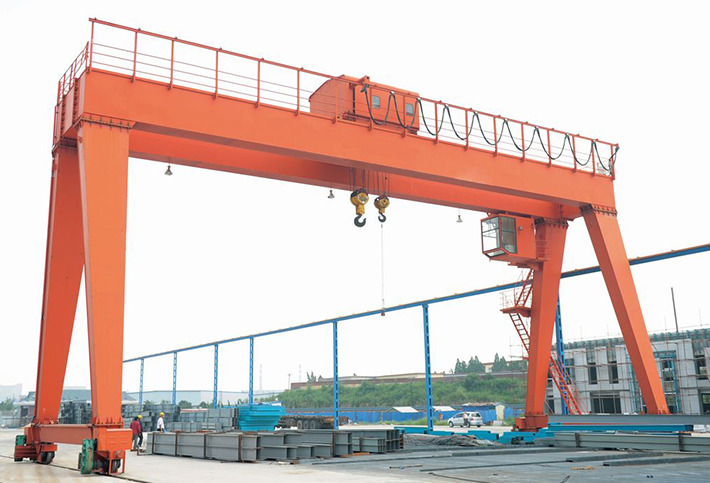

The crane features two main girders with A-shaped legs for excellent stability. The crane travel and cross-travel mechanisms are driven by "three-in-one" geared motors for compact construction and easy maintenance. Comprehensive safety devices are installed, including an anemometer (wind-speed alarm), anti-shaft-break protection, and anti-overturning guards. The trolley runs on top of the main girder rails, providing smooth travel and accurate positioning.

02 Product Advantage

A-shaped leg design delivers excellent stability and wind resistance.
"Three-in-one" geared motor drives for compact, low-maintenance operation.
Comprehensive safety package — wind alarm, anti-shaft-break, anti-overturning.
Wide capacity range covers common outdoor handling requirements.
Suitable for freight yards, ports, rail terminals, and stockyards.
Flexible control options — remote, cab, or ground pendant.

03 Product Parameter

Gantry Crane Parameter Table
Capacity			5t					10t
Cap	Main	t	5					10
	Aux.		—					—
Span		m	18	22	26	30	35	18	22	26	30	31
Lifting Height		m	10			12		10			12
Duty			A5					A5
Speed	Main	m/min	12.5					8.5
	Aux.		—					—
	Trolley Traveling		37.2					43.8
	Crane Traveling		37.7					37.7
limit dimension	L1	mm	6500			9000		6500			9000
	L2		6500			9000		6500			9000
	L		—					—
	C1		5000			7500		5000			7500
	C2		5000			7500		5000			7500
main dimension	H3	mm	13804			15754		14654			16044
	H1		10000			12000		10000			12000
	H2		—					—
	H3		540					540			645
	B		8154			8754		8754			9750
	K		1400					2000
	W /L		6600			7200		7200			8000
Max.Wheel Loading		kN	180	185	190	220	225	220	225	230	270	280
Total Power		kw	31.8					36.5			45.5
Crane Rail Recommended			43Kg/m					43Kg/m			QU70
Power Supply			3-Phase A.C.50Hz 380V					3-Phase A.C.50Hz 380V

04 Get a Free Quote & Product Drawings

Get a Free Crane Quote & Product Drawings
Tell us what you need to lift and where the crane will be used. If available, include the required capacity, span or working radius, and lifting height. Our sourcing team compares suitable manufacturer options by specification, quality and price. Not sure about the specifications? Describe your application and we can help.

Only name, email and a brief project description are required. Product drawings are coordinated with the selected manufacturer after your project requirements have been reviewed. Final technical details are confirmed during the design stage.

By submitting this form, you agree that we may contact you about this project. We do not sell your contact information.

05 Related Products

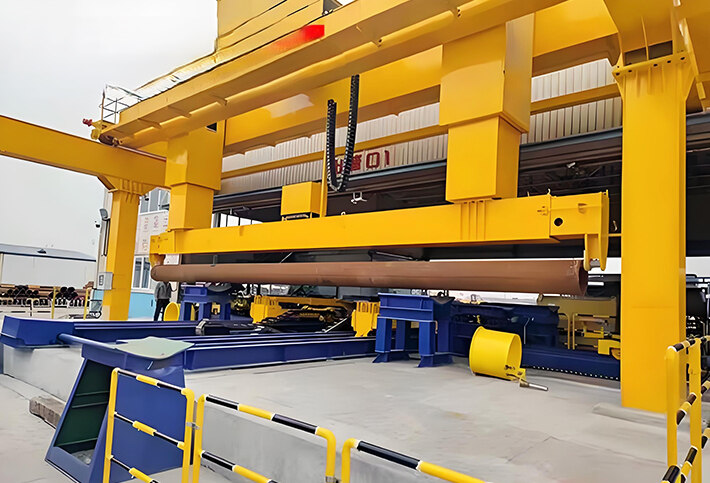

Intelligent Steel Tube Allocation Overhead Crane
