15 t / 20 t Overhead Crane with Carrier Beam

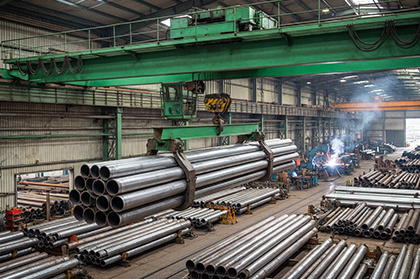

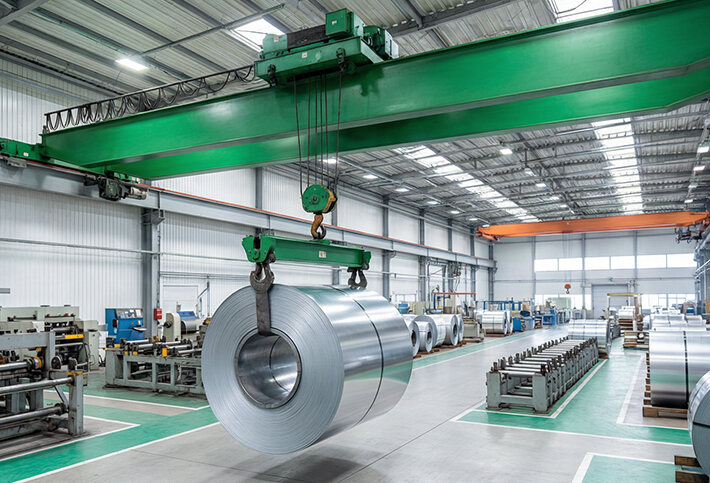

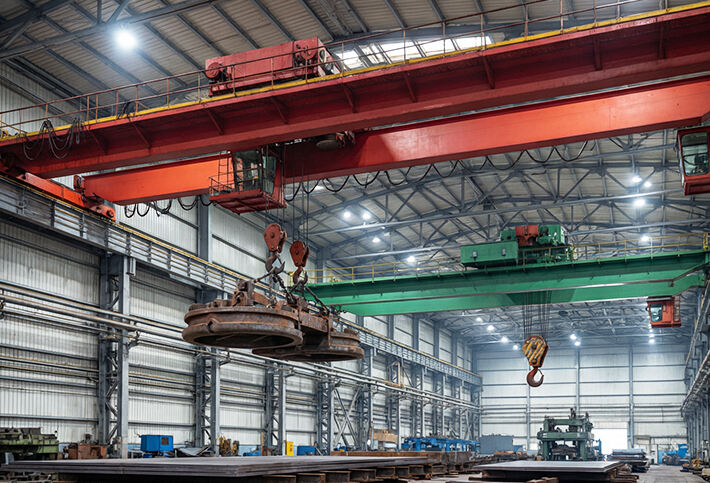

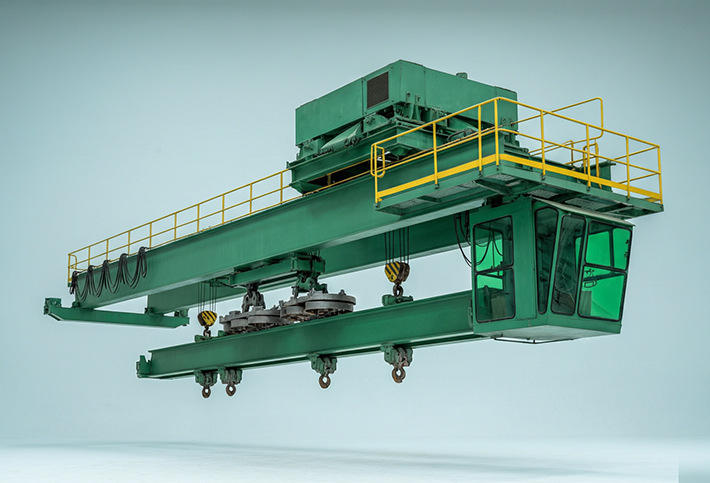

15 t / 20 t Overhead Crane with Carrier Beam is a specialised overhead crane equipped with an extended carrier beam, designed for handling long and slender loads such as steel profiles, pipes, and timber. It is widely used in steel warehouses, metal fabrication shops, and lumber yards. Rated capacity 7.5~7.5~10~10t. Span 22.5~25.0m. Lifting height 16~16m.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

15 t / 20 t Overhead Crane with Carrier Beam

01 Product Description

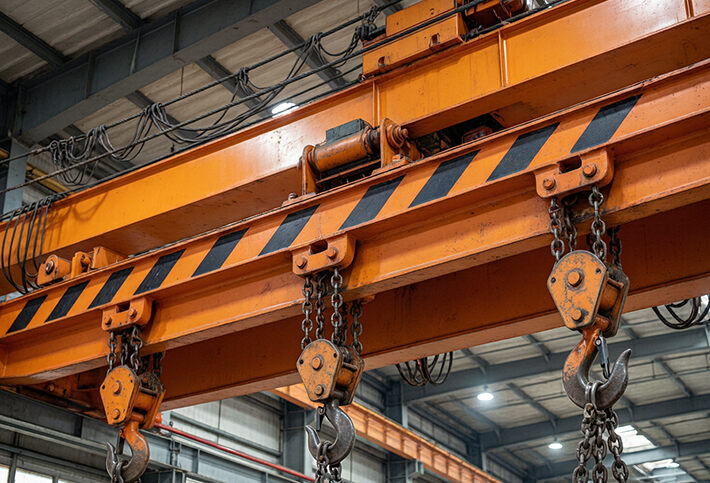

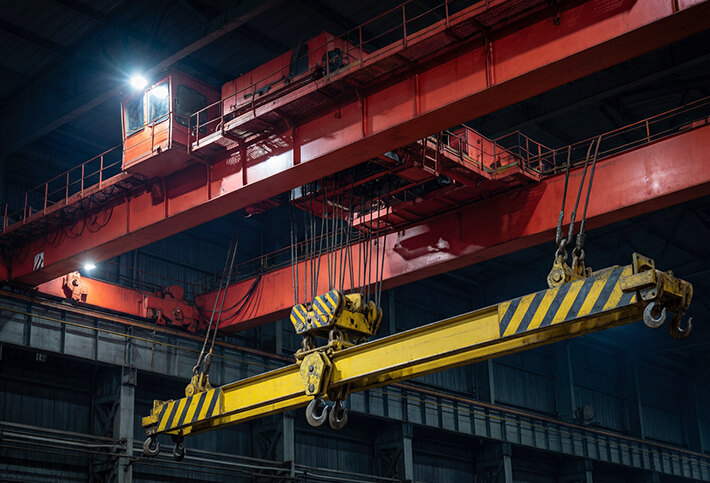

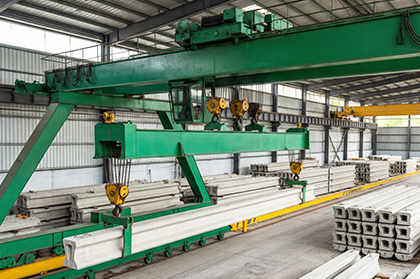

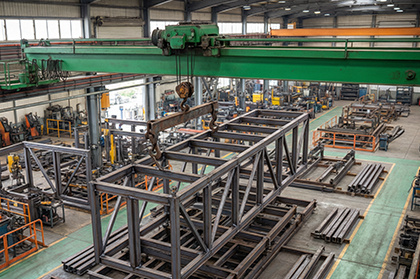

The carrier beam is fitted with multiple suspension points along its length, enabling simultaneous lifting of several elongated pieces in a single lift. The beam length and number of suspension points can be customised to match the material dimensions. The trolley travel and crane travel mechanisms operate independently for smooth, coordinated motion. Electrical control is provided via a joystick console or radio remote control for operator convenience. The main girders are of box or lattice construction, offering excellent rigidity and load-carrying capacity.

02 Product Advantage

Carrier-beam design allows simultaneous handling of multiple long items, maximising productivity.
Customisable beam length and suspension-point spacing for specific load profiles.
High bridge rigidity ensures stable operation even at large spans.
Flexible operation with joystick or radio remote control option.
Ideal for dedicated storage of steel sections, pipes, and long products.
Significantly reduces manual handling labour and improves loading/unloading efficiency.

03 Product Parameter

Lifting capacity		t	7.5+7.5					10+10
Span		m	22.5	25.0	28.5	31.5	34.5	22.5	25.5	28.5	31.5	34.5
Lifting Height			16					16
Duty			A6					A6
Speed	Hoisting	m/min	13.2					12.6
	Crab travelling		36.7					36.2
	Crane travelling		101.4					89
limit dimension	L	mm	3000					4000
	L1		1500					1500
	L2		1500					1500
	h		441				341	439				339
main dimension	H	mm	2188				2288	2290				2390
	H1		940				1040	940				1040
	H2		390	540	690	840		392	542	692	842
	H3		2810	2760	3110	3260		2812	2962	3112	3262
	K		5000					6000
	W		7400	8000				8400	9000
	B		9234	9844				10234	10844
	B1		260					260
Max.Wheel Loading		kN	190	202	212	220	229	220	230	244	251	260
Total Power		kw		65				71
Crane Rail Recommended			43kg/m or QU70
Power Supply			3-Phase A.C.50Hz 380V

04 Inquiry
