Ship Loader

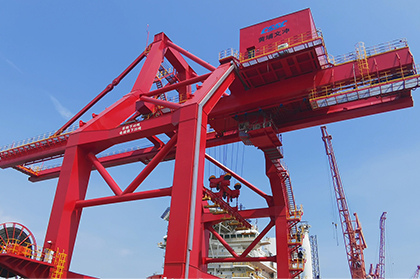

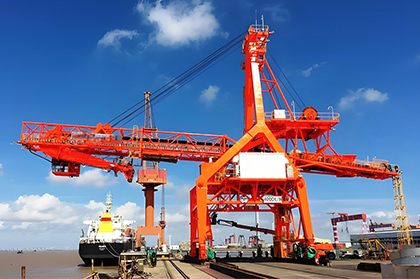

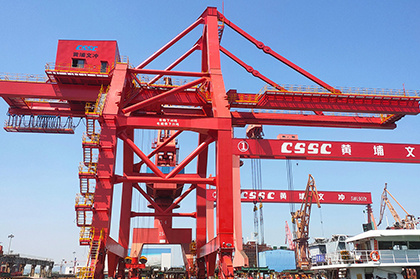

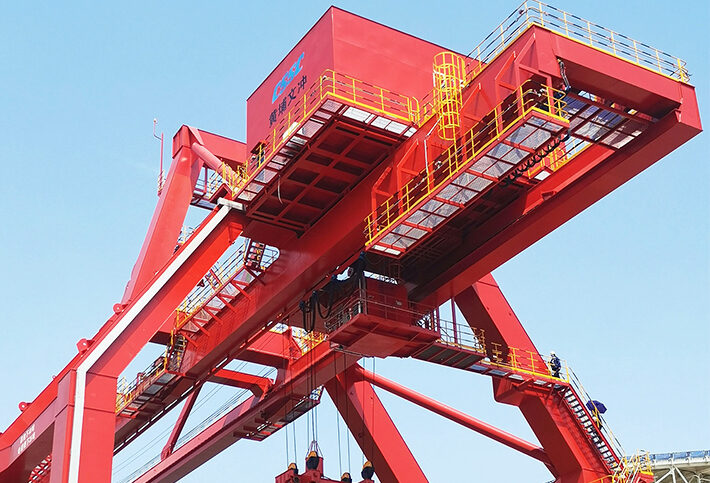

The ship loader is a specialised machine for continuous bulk-loading of vessels at ports. It handles bulk materials such as coal, iron ore, grain, cement, limestone, coke, aggregates, and clay. Loading capacity 200~12000t. The loader is designed for large and medium-sized bulk terminals.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

01 Product Description

The ship loader consists of a boom belt conveyor, a telescopic loading chute, a slewing mechanism, a travel mechanism, and a gantry structure. The boom can be extended/retracted and luffed, while the loading chute telescopes to minimise the drop height and reduce dust generation. The entire machine travels along the wharf rails to cover multiple berths. Coordinated slewing and luffing motions provide full compartment coverage. Variable-rate feed allows precise control of the loading quantity.

02 Product Advantage

High loading rate suited to large and medium bulk terminals.
Telescopic chute reduces drop height and dust emissions for environmental compliance.
Boom slewing + luffing provides complete coverage of every ship compartment.
Variable-rate feed for precise load-out quantity control.
Wide material range — coal, ore, grain, cement, limestone, and more.
Rail travel covers multiple berths for maximum operational flexibility.

03 Product Parameter

Main Technical Parameters
Loading capacity	Loading Capacity	t/h	200~12000
Material Characteristics	Materials		bulk materials such as coal, coke, iron ore, limestone, sand, clay etc.
	Density	t/m³	0.5~2.5
	Particle Size	mm	0~300
Design of ship type	Ship Type	DWT	3000~150000
Boom Outreach	Maximum	m	12~55
Boom Outreach	Minimum	m	6~27.5
Conveyor Belt	Belt Width	mm	650~2400
Conveyor Belt	Belt Speed	m/s	1.25~5
Boom Luffing	Operation	°	-12~+15
Boom Luffing	Non-operation	°	70
Driving speed	Traveling Speed	m/min	frequency control
Gauge	Rail Gauge	m	10~24
Maximum wheel pressure	Maximum Wheel Load	KN	300/350
Recommended track	Recommended Rail		QU80/QU100
Power supply method	Power Supply Mode		cable drum/safety bus bar
Communication methods	Communication Mode		cable drum/wireless
Control method	Control Method		fully automatic/PLC/manual operation/ single mechanism operation
