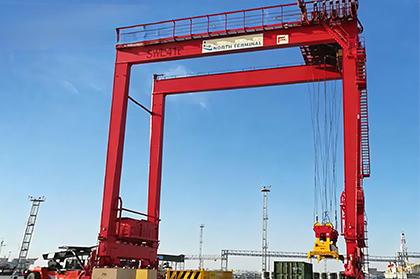

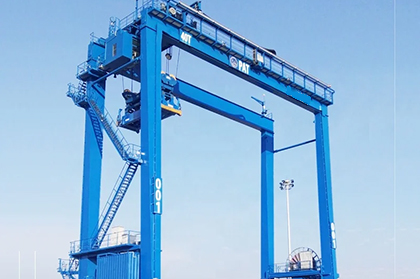

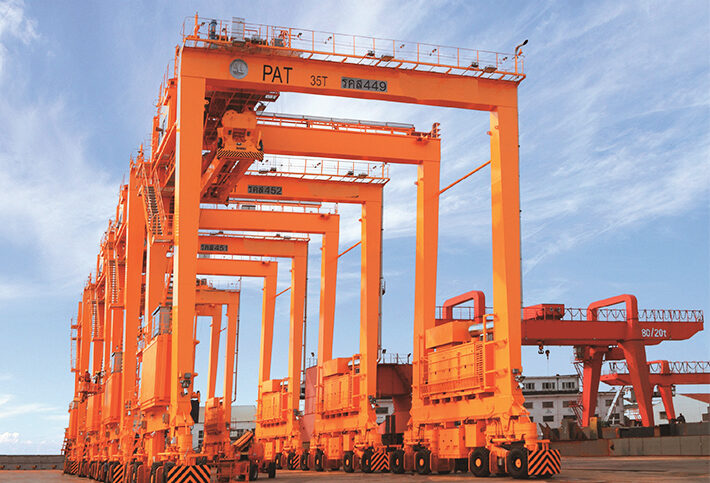

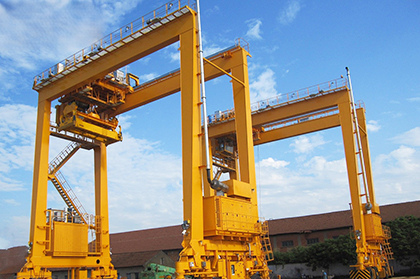

Rubber-Tyred Container Gantry Crane (RTG)

The rubber-tyred container gantry crane (RTG) is a key machine in container terminals, used for loading, unloading, stacking, and transferring containers within the container yard. Rated capacity (under spreader) 35~41t. Span 23.47~26~23.47m. Lifting height 15.5~18.5~15.5m.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

Rubber-Tyred Container Gantry Crane (RTG)

01 Product Description

The RTG runs on rubber tyres, allowing free movement within the container yard without the need for fixed rails. Power is supplied by a diesel generator set or a mains-electric connection. The automatic telescopic spreader adapts to 20 ft and 40 ft containers. Hoisting and trolley travel are controlled by variable-frequency drives for precise positioning. An anti-sway system minimises spreader oscillation, increasing handling speed and safety.

02 Product Advantage

Rubber-tyred travel provides maximum yard mobility without rail installation.
Dual power supply — diesel generator or mains electric — for operational flexibility.
Variable-frequency drives for smooth operation and precise positioning.
Anti-sway system dramatically reduces load swing for faster, safer cycles.
Automatic telescopic spreader handles 20 ft and 40 ft containers seamlessly.
Optional GPS positioning and yard management system for intelligent operations.

03 Product Parameter

Main Technical Parameters
Rated lifting capacity	Rated Lifting Capacity	35	41	70	t
Base distance	Base Distance	7	7	7.5	m
Span	Span	23.47/26	23.47/26	23.47/26	m
Lifting height	Lifting Height	15.5/18.5	15.5/18.5	15.5/18.5	m
Stacking layers	Stack Layers	4/5	4/5	4/5	layer
Container specifications	Container Specification	20', 40', 45'	20', 40', 45'	20', 40', 45'
Speed	Hoisting(full load/empty load)	20/40	25/50	25/50	m/min
	Gantry Traveling(full load/empty load)	30/130	30/130	30/130	m/min
	Trolley Traveling	70	70	70	m/min
Number of wheels	Wheel Numbers	8	8/16	16	piece
Maximum wheel pressure	Maximum Wheel Load	300	320/180	200	kN
Power supply	Power Supply	diesel generator set or three phase AC380V 50Hz
