Bridge-Type Grab Ship Unloader

The bridge-type grab ship unloader is a specialised continuous ship-discharging machine for bulk cargo at ports. It unloads bulk materials such as coal, iron ore, and cement clinker from vessels onto the wharf conveyor system. Unloading capacity 200~12000t. It is designed for large and medium-sized bulk cargo terminals.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

01 Product Description

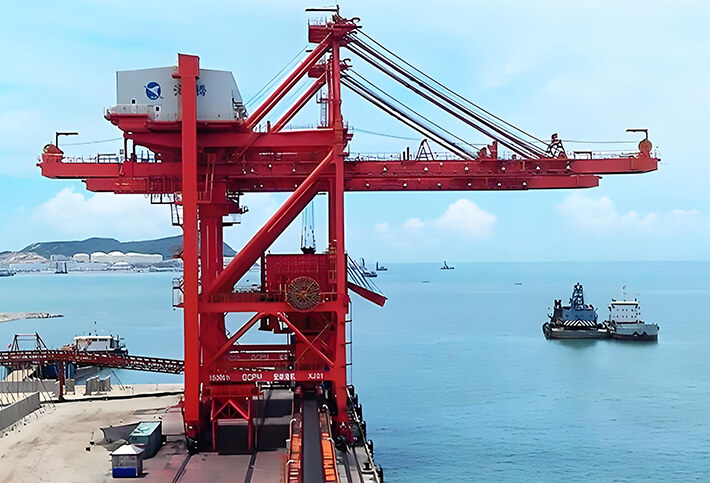

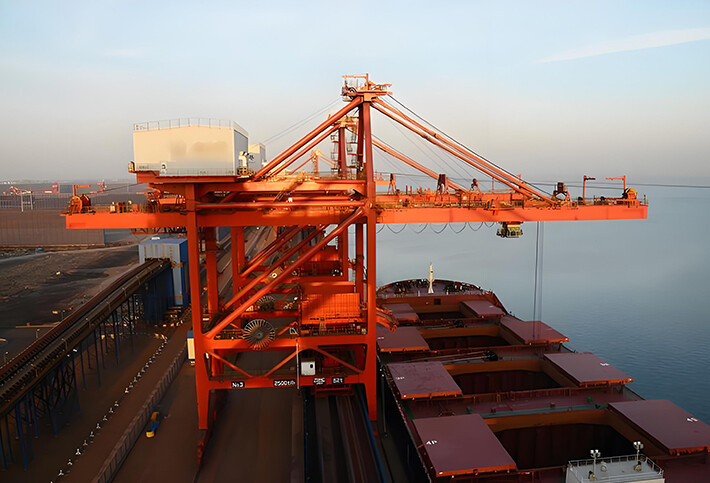

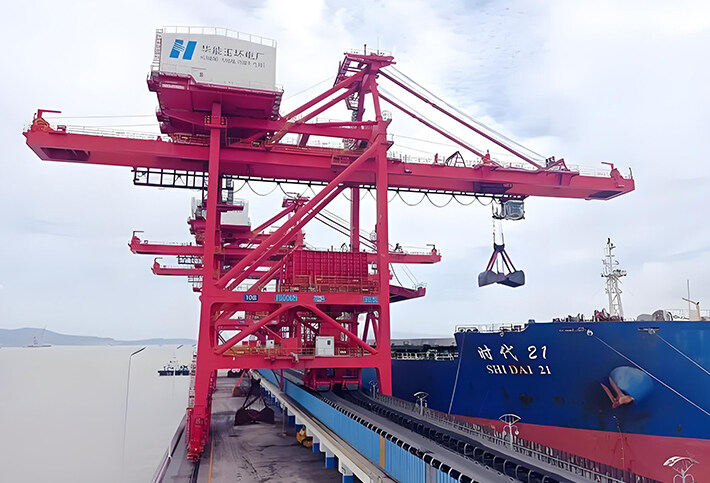

The unloader uses a grab as the reclaiming device. Through the reciprocating motion of the trolley, material is grabbed from the ship's hold and transferred to a feed hopper, from which a belt conveyor system carries it to the stockyard. The trolley is driven by variable-frequency drives for high speed and accurate positioning. A dust suppression system minimises fugitive dust emissions during the unloading process. Operation is performed from an operator cab with excellent visibility of the hold.

02 Product Advantage

High unloading rate suited to large and medium bulk terminals.
Variable-frequency trolley drive for high-speed, accurate positioning.
Integrated dust suppression system for environmental compliance.
Feed system provides seamless transfer to wharf belt conveyors.
Grab type can be selected to match specific material characteristics.
High degree of automation reduces manual labour in the hold.

03 Product Parameter

Main Technical Parameters
Loading capacity	Loading Capacity	t/h	200~12000
Material Characteristics	Materials		bulk materials such as coal, coke, iron ore, limestone, sand, clay etc.
	Density	t/m³	0.5~2.5
	Particle Size	mm	0~300
Design of ship type	Ship Type	DWT	3000~150000
Boom Outreach	Maximum	m	12~55
Boom Outreach	Minimum	m	6~27.5
Conveyor Belt	Belt Width	mm	650~2400
Conveyor Belt	Belt Speed	m/s	1.25~5
Boom Luffing	Operation	°	-12~+15
Boom Luffing	Non-operation	°	70
Driving speed	Traveling Speed	m/min	frequency control
Gauge	Rail Gauge	m	10~24
Maximum wheel pressure	Maximum Wheel Load	KN	300/350
Recommended track	Recommended Rail		QU80/QU100
Power supply method	Power Supply Mode		cable drum/safety bus bar
Communication methods	Communication Mode		cable drum/wireless
Control method	Control Method		fully automatic/PLC/manual operation/ single mechanism operation
