Product Introduction:

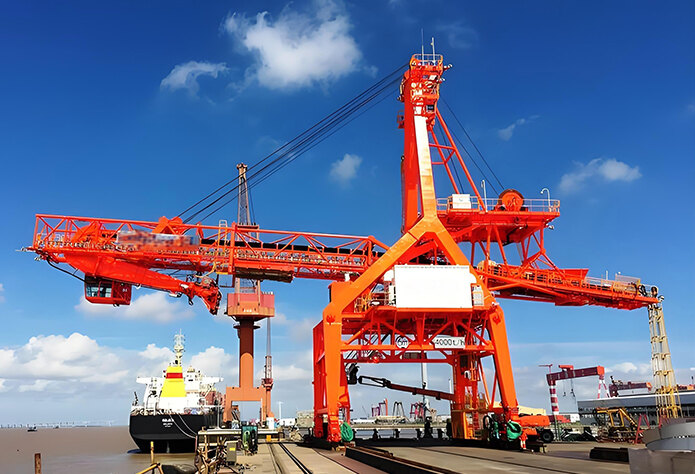

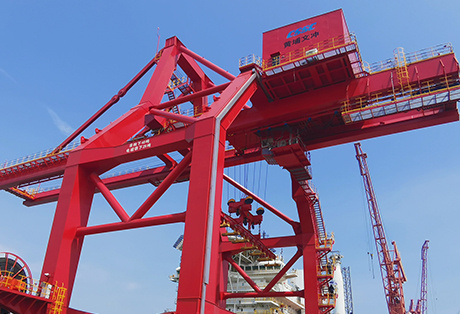

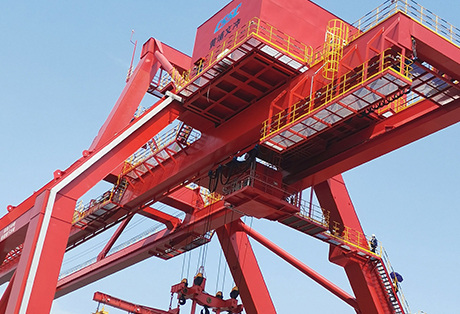

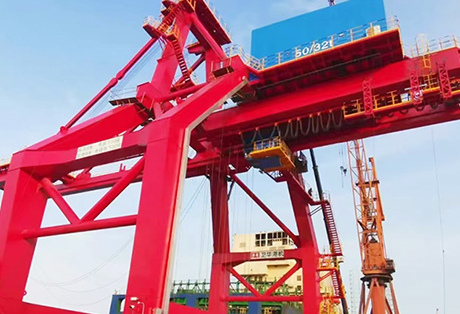

1. Ship loader is large-scale bulk machinery used for loading materials in bulk ports and terminals and conveying bulk materials with different densities and particle sizes, such as sand, limestone, cement, coal, grain and etc. It usually provides continuous loading operation together with belt conveyor.
2. The design, manufacture and inspection comply with latest Chinese standard and international standards such as FEM, DIN, IEC, AWS and etc. It is mainly composed of metal structure, traveling mechanism, column, rotating mechanism,luffing mechanism, telescopic boom gear, telescopic chute mechanism, tripper car, belt conveying system, counterweight,water spray dust removal system, electrical system and etc.
3. It is divided into four types according to performance characteristics, respectively mobile type, arc trajectory swing type and liner swing type. Now, the first two types ship loader are the main products in the market.
4. The ship loader adapts to ship type from 3000t to 150000ton and production capacity from 200t/h to 12000t/h. It owns advanced technology, stable performance, mature operation, high efficiency, long service life, easy maintenance, energy saving and environmental protection as well as meets efficient and frequent operation requirements.
Technical Features:
1. multiple operation modes with free switching: single action, manual operation, semi-automatic operation and local mode according to different operation requirements.
2. Vector variable frequency speed control, CMS intelligent service system, real-time monitoring of running status.
3. luffing operation and telescopic operation of boom, adaptability to different ship types by changing chute charging position and cooperating with crane traveling, simple and flexible operation.
4. linkage operation with ground belt conveyor.
5. mature equipment, reasonable structure, small maintenance workload
6. telescopic and adjustable chute, water spray dust system at trans fer points of materials, to meet green and environmental operation needs
7. green and environmental protection(dry mist dust removal and water mist dust removal)
8. A variety of safety measures, including strong wind alarm, safety dynamic scanning.
