Product Introduction:

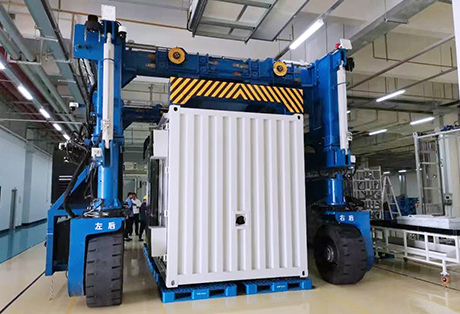

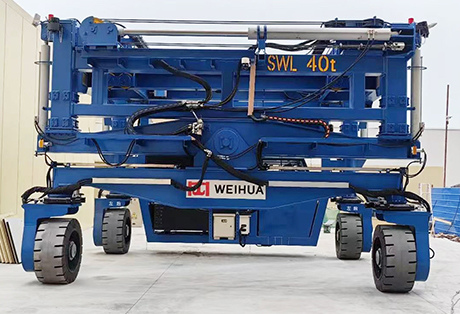

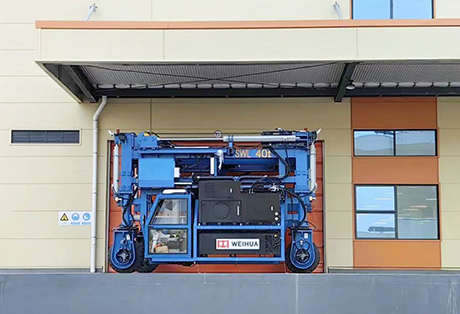

Container Straddle Truck is appropriate for handling ISO container from quayside to container yard or loading& unloading ISO container in container yard such as port, wharf. Supported by rubber tyres and powered by diesel generator,battery+small power generator, it consists of gantry mechanism, rotating mechanism, gantry frame, power system, shock mitigation system and special container spreader.
The design, manufacture and inspection comply with Chinese standard and international standards such as FEM, DIN, IEC, AWS and etc.
The product has the characteristics of multiple function, high efficiency, stability, reliability, wide range of operation, good maneuverability, high speed, easy operation and maintenance. Straight travel, lateral travel,ackermann steering are the most important features. It is also completed with safety indication and overload protection device to provide maximum safety for operators and equipment. The electric drive adopts fully digital AC variable frequency and PLC speed control with constant power. Standard bought-in components from well-known brands at home and abroad ensure overall quality.
Technical Features:
1. a variety of power combination solutions (diesel engine, small power generator units + batteries) are provided, energy saving and environmental protection.
2. A variety of steering functions, including straight line, oblique line, ackerman steering and so on.
3. CMS intelligent service management system, real-time monitoring of running status.
4. vector frequency conversion, torque balance control, energy saving and environmental protection, convenience and efficiency.
5. automatic fault detection and real-time data display, safety and reliability.
6. unique crane guiding system and trimming technology,shock mitigation system , jacking point, rollover protection.
7. Humanized and personalized driver’s cab with wide vision and comfortable steering.
8. A variety of safety measures, including strong wind alarm, safety dynamic scanning.
